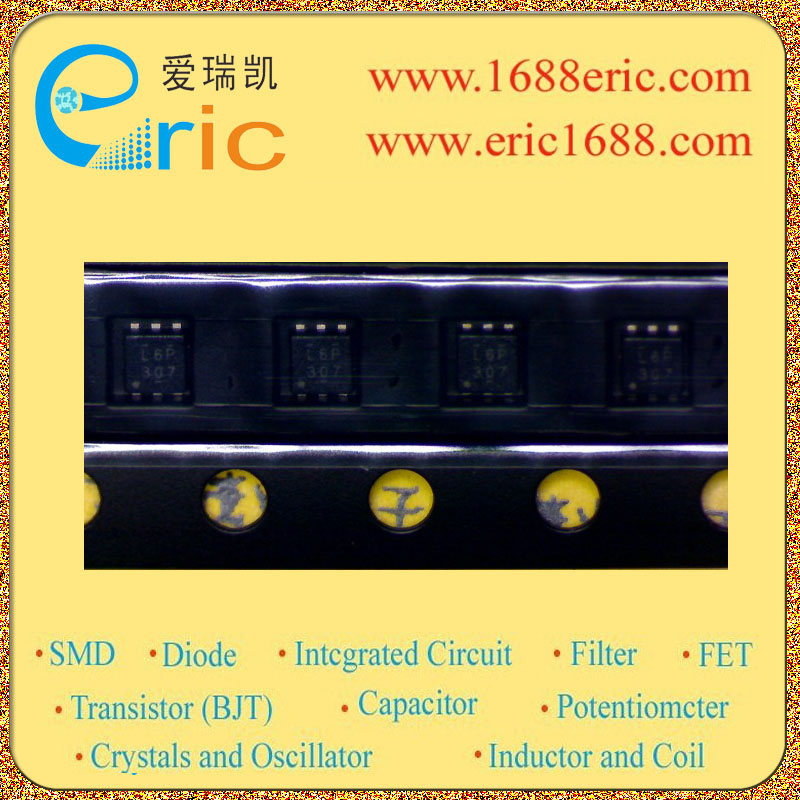

S-1112B30PI
 型号:  S-1112B30PI
 标记/丝印/代码/打字:  L6P
 厂家:  SEIKO
 封装:  SNT-6A
 批号:  09NOPB
 库存数量:  4500
 所属分类:  电源管理ICPower Management IC/PMIC
  电压调整器/稳压Voltage Regulator
    低压差LDOLow Dropout (LDO)
 技术文档PDF:  在线阅读

 在线购买

S-1112B30PI L6P 的参数

电路数量 Number of Regulators 1
输入电压VIN Voltage - Input 0.3~7V
输出电压VOUT Voltage - Output 3V
输出电流Io Current - Output 100mA/0.1A
最大压降VDO Voltage - Dropout 190mV/0.19V
带使能脚EN/CE(ON/OFF功能) With Enable Pin 有 Yes
最大耗散功率Pd Power dissipation 500mW/0.5W
Description & Applications HIGH RIPPLE-REJECTION AND LOW DROPOUT CMOS VOLTAGE REGULATOR ;?Output voltage: 1.5 V to 5.5 V, selectable in 0.1 V steps. ?High-accuracy output voltage: ±1.0% ?Low dropout voltage: 200 mV typ. (3.0 V output product, IOUT = 100 mA) ?Low current consumption: During operation: 35 μA typ., 65 μA max. During shutdown: 0.1 μA typ., 1.0 μA max. ?High peak current capability: 150 mA output is possible (@ VIN ≥ VOUT(S) + 1.0 V) *1 ?Built-in ON/OFF circuit: Ensures long battery life. ?High ripple rejection: 70 dB typ. (@ 1.0 kHz) ?Built-in overcurrent protector: Overcurrent of output transistor can be restricted. ? Power supply for battery-powered devices ? Power supply for personal communication devices ? Power supply for home electric/electronic appliances ? Power supply for cellular phones
描述与应用 高纹波抑制率低压差 CMOS电压稳压器;?输出电压:1.5 V至5.5 V,0.1 V步骤选择。 ?高输出电压精度:±1.0% ?低压差电压:200 mV典型。 (3.0 V输出产品,IOUT= 100 mA时) ?低电流消耗:在操作过程中:35μA(典型值),最大为65μA。 休眠时:0.1μA(典型值),1.0μA最大值。 ?高峰值电流容量:150 mA输出是可能的(@ VIN≥VOUT(S)+1.0 V) * 1 ?内置开/关控制电路,确保电池寿命长。 ?高纹波抑制:70 dB(典型值)。 (1.0 kHz时) ?内置过载电流保护:可以限制输出晶体管的过载电流。 ?电源为电池供电设备 ?个人通信设备的电源 ?电源家用电动/电子电器 ?手机电源
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
S-1112B31MC L6Q SEIKO 05+ SOT-153/SOT23-5 0 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
S-1112B32MC L6R SEIKO 05+ SOT-153/SOT23-5 5600 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
S-1112B32MC L6RF SEIKO 05+ SOT-153/SOT23-5 0 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
S-1112B31MC-L6QTFG L6QJ SEIKO 05+NOPB SOT-153/SOT23-5 2000 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
S-1112B33MC L6S SEIKO 05+NOPB50 SOT-153/SOT23-5 2900 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
S-1112B35MC L6U SEIKO 08NOPB SOT-153/SOT23-5 1500 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
S-1112B30PI L6P SEIKO 09NOPB SNT-6A 4500 电源管理ICPower Management IC/PMIC-电压调整器/稳压Voltage Regulator-低压差LDOLow Dropout (LDO) 查看
