BCW61
 型号:  BCW61

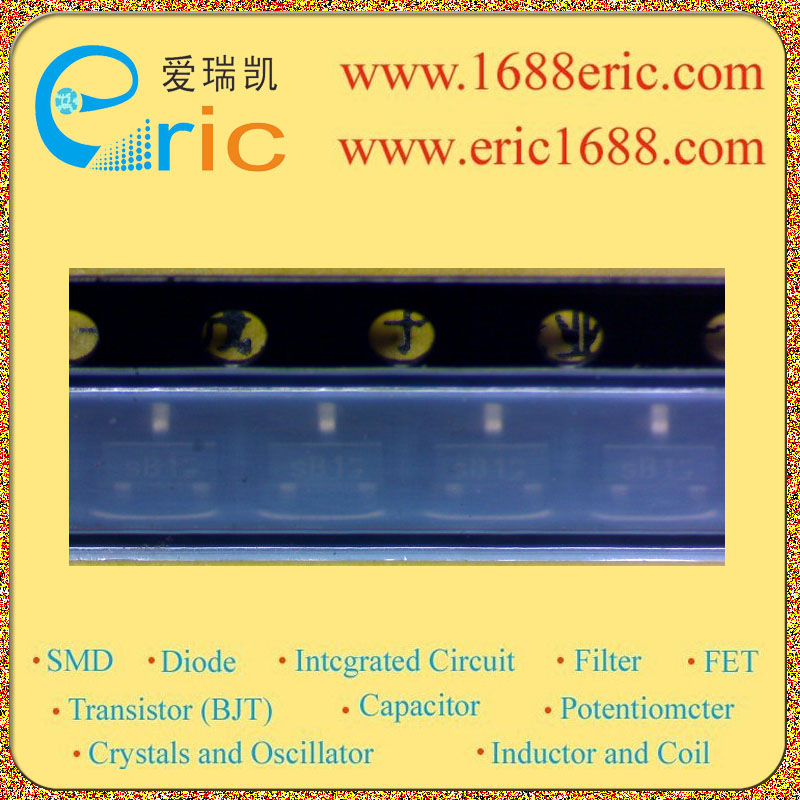

 标记/丝印/代码/打字:  SB1
 厂家:   INFINEON
 封装:   SOT-23/SC-59
 批号:  05+
 库存数量:  2700
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  PNP
 技术文档PDF:  在线阅读

 在线购买

BCW61 SB1 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) ?32V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) ?32V
集电极连续输出电流IC Collector Current(IC) ?100mA/-0.1A
截止频率fT Transtion Frequency(fT) 250MHz
直流电流增益hFE DC Current Gain(hFE) 120~630
管压降VCE(sat) Collector-Emitter SaturationVoltage ?200mV/-0.2V
耗散功率Pc PoWer Dissipation 330mW/0.33W
Description & Applications PNP Silicon AF Transistors ? For AF input stages and driver applications ? High current gain ? Low collector-emitter saturation voltage ? Low noise between 30 Hz and 15 kHz ? Complementary types: BCW60, BCX70 (NPN) ? Pb-free (RoHS compliant) package1) ? Qualified according AEC Q101
描述与应用 PNP硅晶体管自动对焦 ?对于AF输入级和驱动器应用 ?高电流增益 ?低集电极 - 发射极饱和电压 ?低噪音之间30 Hz和15千赫 ?互补类型:BCW60,BCX70(NPN) ?无铅(符合RoHS)包1) ?符合AEC Q101
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
BCW61DTA BD ZETEX 06+ SOT-23 3000 三极管Bipolar Junction Transistors(BJT)-其它Other 查看
BCW60 AK INFINEON 05+ SOT-23/SC-59 13470 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW60B AB NXP/PHILIPS 05NOPB SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW60C ACW NXP/PHILIPS 05+rohs SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW60D AD VISHAY NOPB SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW60D AD NXP/PHILIPS 04NOPB344 SOT-23/SC-59 857 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW60FNR L DE 05+ SOT-23/SC-59 2800 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW61A BAS SIEMENS 05+ SOT-23/SC-59 3000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BCW61A NMA ZETEX 04+ SOT-23 6000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BCW61A BA NXP/PHILIPS 05+ SOT-23/SC-59 500 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BCW61B GBB ROHM 05+ SOT-23/SC-59/SMT3 3000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BCW61B BB INFINEON 10+rohs SOT-23/SC-59 30000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BCW61-C-MTF BC SAMSUNG 05+ SOT-23/SC-59 3000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BCW61D BD NXP/PHILIPS 05+ SOT-23/SC-59 9000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BCW61D BD NXP/PHILIPS 05+ SOT-23/SC-59 324050 三极管Bipolar Junction Transistors(BJT)-PNP 查看
BCW65C EC HI-SINCERITY 05+ SOT-23/SC-59 9000 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW65C EC ON 5 SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW66F EF INFINEON 05+ SOT-23/SC-59 300 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW66G EG FAIRCHILD 10NOPB SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
BCW66GTA EG ZETEX 05+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-NPN 查看
