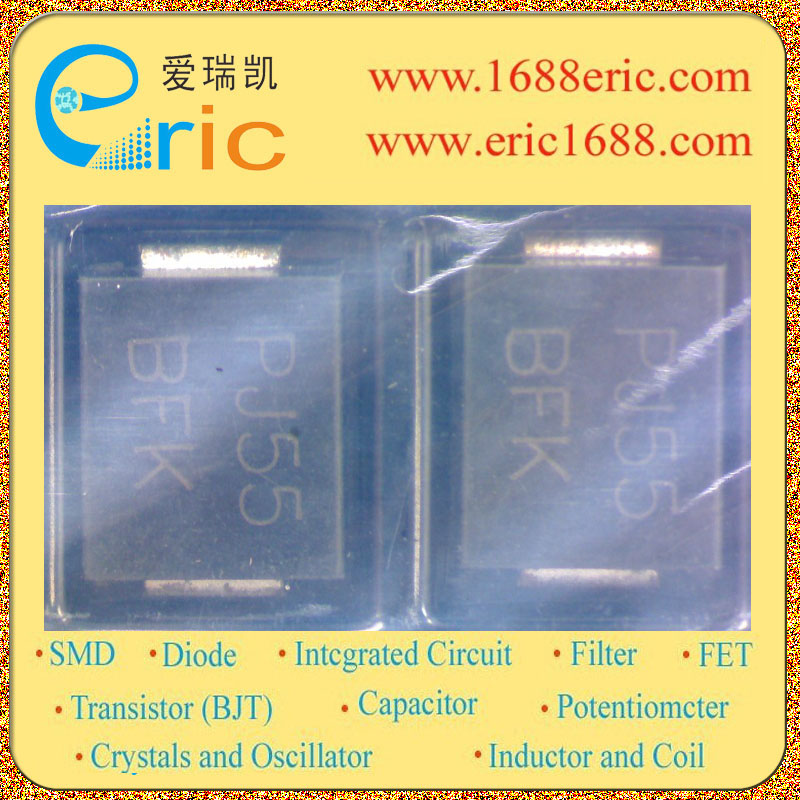

1.5SMCJ30CAT/R BFK 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
30V |
| 反向击穿电压VBR
Breakdown Voltage |
36V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
1500W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
31A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR；Features ? For surface mounted applications in order to optimize board space. ? Low profile package ? Built-in strain relief ? Glass passivated junction ? Excellent clamping capability ? Low inductance ? Fast response time: typically less than 1.0 ps from 0 volts to BV min ? Typical IR less than 1μA above 10V ? High temperature soldering : 250°C/10 seconds at terminals. ? Plastic package has Underwriters Laboratory Flammability Classification 94V-O |
| 描述与应用 |
表面贴装瞬态电压抑制器;特性 ?表面安装应用便于优化板面空间。 ?低调包 ?内置应变救济 ?玻璃钝化结 ?优秀的夹紧能力 ?低电感 ?快速响应时间:通常小于1.0 ps从0伏特到BV min ?典型红外小于1μa高于10 v ?高温钎焊:250°C / 10秒在终端。 ?塑料包保险商实验室易燃性类别94V-O |
