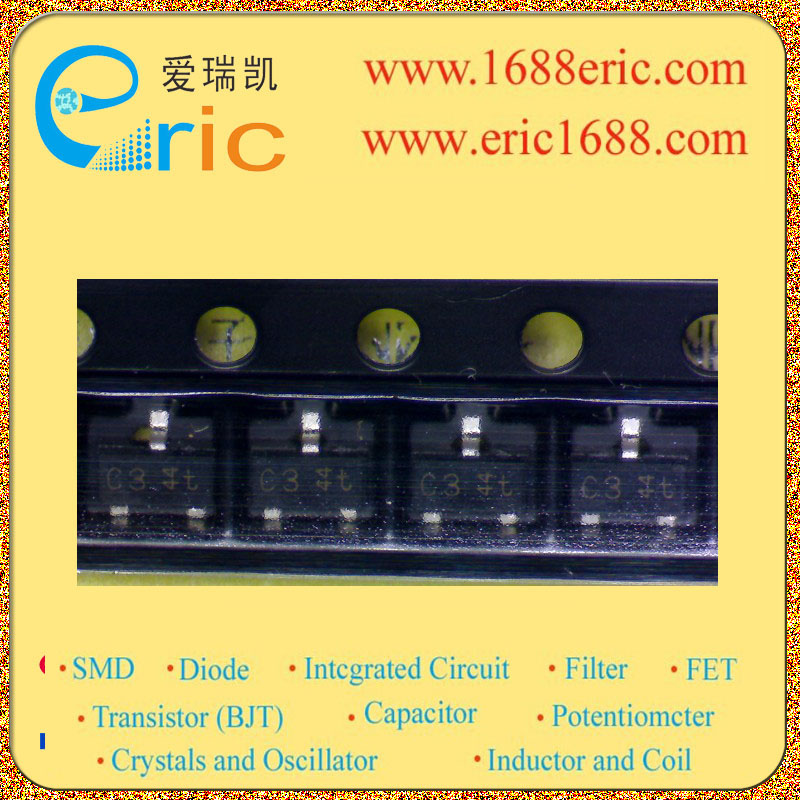

1PS226
 型号:  1PS226
 标记/丝印/代码/打字:  c3
 厂家:  NXP/PHILIPS
 封装:  SOT-23/SC-59
 批号:  04nopb
 库存数量:  0
 所属分类:  二极管Diodes
  开关二极管Switching Diodes
    双管串联1 PAir Series Connection
 技术文档PDF:  在线阅读

 在线购买

1PS226 c3 的参数

反向电压Vr Reverse Voltage 80V
平均整流电流Io Average Rectified Current 125mA/0.125A
最大正向压降VF Forward Voltage(Vf) 1.2V
反向恢复时间Trr Reverse Recovery Time 4.0ns
最大耗散功率Pd Power Dissipation 250mW/0.25W
Description & Applications ? consists of two high-speed switching diodes connected in series, ? High switching speed: mAx. 4 ns ? Continuous reVerse VoltAge: mAx. 80 V ? RepetitiVe peAk reVerse VoltAge: mAx. 85 V ? RepetitiVe peAk forwArd current: mAx. 500 mA. ? High-speed switching
描述与应用 ?由两个高速开关二极管串联连接 ?高开关速度:最大。 4 NS ?连续反向电压:最大。 80伏 ?重复峰值反向电压:最大。 85 V ?重复峰值正向电流:最大。 500毫安。 ?高速开关
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
1PS181 A3 NXP/PHILIPS 05+ SOT-23/SC-59 2100 二极管Diodes-开关二极管Switching Diodes-双管共阳极1 PAir Common Anode 查看
1PS181 A3 NXP/PHILIPS 04+1RNOPB SOT-23/SC-59 15000 二极管Diodes-开关二极管Switching Diodes-双管共阳极1 PAir Common Anode 查看
1PS184 B3 NXP/PHILIPS 05+ SOT-23/SC-59 6000 二极管Diodes-开关二极管Switching Diodes-双管共阴极1 PAir Common CAthode 查看
1PS184 B3 NXP/PHILIPS 05+ SOT-23/SC-59 3900 二极管Diodes-开关二极管Switching Diodes-双管共阴极1 PAir Common CAthode 查看
1PS193 F3 NXP/PHILIPS 05+ SOT-23/SC-59 0 二极管Diodes-开关二极管Switching Diodes-单管Single 查看
1PS193 F3 NXP/PHILIPS 05+ SOT-23/SC-59 300 二极管Diodes-开关二极管Switching Diodes-单管Single 查看
1PS226 C3 NXP/PHILIPS 05+ SOT-23/SC-59 4050 二极管Diodes-开关二极管Switching Diodes-双管串联1 PAir Series Connection 查看
1PS226 c3 NXP/PHILIPS 04nopb SOT-23/SC-59 0 二极管Diodes-开关二极管Switching Diodes-双管串联1 PAir Series Connection 查看
1PS300 AT3 NXP/PHILIPS 05+ SOT-323/SC-70 0 二极管Diodes-开关二极管Switching Diodes-双管共阳极1 PAir Common Anode 查看
1PS301 Bt3 NXP/PHILIPS 03+ SOT-323/SC-70 3000 二极管Diodes-开关二极管Switching Diodes-双管共阴极1 PAir Common CAthode 查看
1PS301 Bt3 NXP/PHILIPS 09+ROHS SOT-323/SC-70 158850 二极管Diodes-开关二极管Switching Diodes-双管共阴极1 PAir Common CAthode 查看
1PS302 Ct3 NXP/PHILIPS 05+ROHS1626 SOT-323/SC-70 2074 二极管Diodes-开关二极管Switching Diodes-双管串联1 PAir Series Connection 查看
1PS302 Ct3 NXP/PHILIPS 07NOPB SOT-323/SC-70 0 二极管Diodes-开关二极管Switching Diodes-双管串联1 PAir Series Connection 查看
1PS59SB10 10 NXP/PHILIPS 05+1R03NOPB SOT-23 0 二极管Diodes-其它Other 查看
1PS59SB15 15 NXP/PHILIPS 05+NOPB1K SOT-23/SC-59 2900 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-双管共阴极1 Pair Common Cathode 查看
1PS59SB16 16 NXP/PHILIPS 04+NOPB SOT-23/SC-59 12000 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-双管共阳极1 Pair Common Anode 查看
1PS59SB16 16 NXP/PHILIPS 04NOPB SOT-23/SC-59 6000 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-双管共阳极1 Pair Common Anode 查看
1PS59SB20 20 NXP/PHILIPS 04+ROHS SOT-23/SC-59 225300 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-单管Single 查看
1PS70SB10 7t0 NXP/PHILIPS 11+ROHS SOT-323/SC-70 40500 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-单管Single 查看
1PS70SB45 6t5 NXP/PHILIPS 05+ SOT-323/SC-70 1000 二极管Diodes-肖特基势垒二极管SBDSchottky Barrier Diodes-双管共阴极1 Pair Common Cathode 查看
