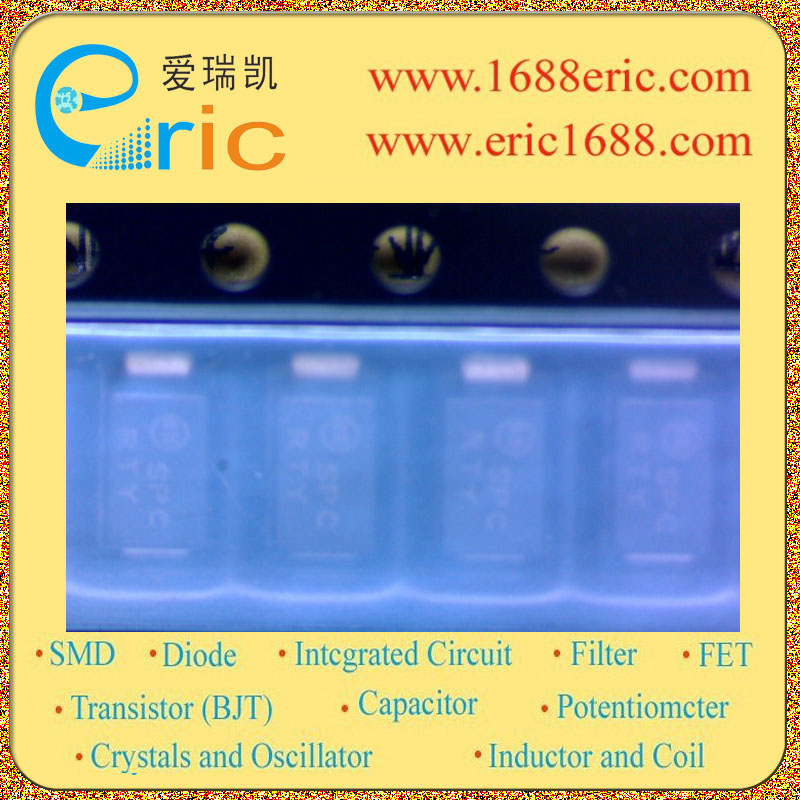

1SMA36CAT3 RTY 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
36V |
| 反向击穿电压VBR
Breakdown Voltage |
42.11V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
400W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
6.9A |
| 额定耗散功率Pd
Power dissipation |
1.5W |
| Description & Applications |
400 Watt Peak Power Zener Transient Voltage Suppressors；Specification Features ? Working Peak Reverse Voltage Range ? 10 V to 78 V ? Standard Zener Breakdown Voltage Range ? 11.7 V to 91.3 V ? Peak Power ? 400 Watts @ 1 ms ? ESD Rating of Class 3 (> 16 kV) per Human Body Model ? Response Time is Typically < 1 ns ? Flat Handling Surface for Accurate Placement ? Package Design for Top Slide or Bottom Circuit Board Mounting ? Low Profile Package ? Pb?Free Packages are Available |
| 描述与应用 |
400瓦峰值功率稳压 瞬态电压 抑制器;规格特性 ?工作峰值反向电压范围 - 10 V至78 V ?标准齐纳击穿电压范围 - 11.7 V至91.3 V ?峰值电力 - 400瓦@1ms ?每人体模型ESD额定值的3类（>16千伏） ?响应时间通常小于1 ns ?精确放置的平面处理表面 ?滑动顶部或底部的电路板安装的包装设计 ?薄型封装 ?无铅包可用 |
