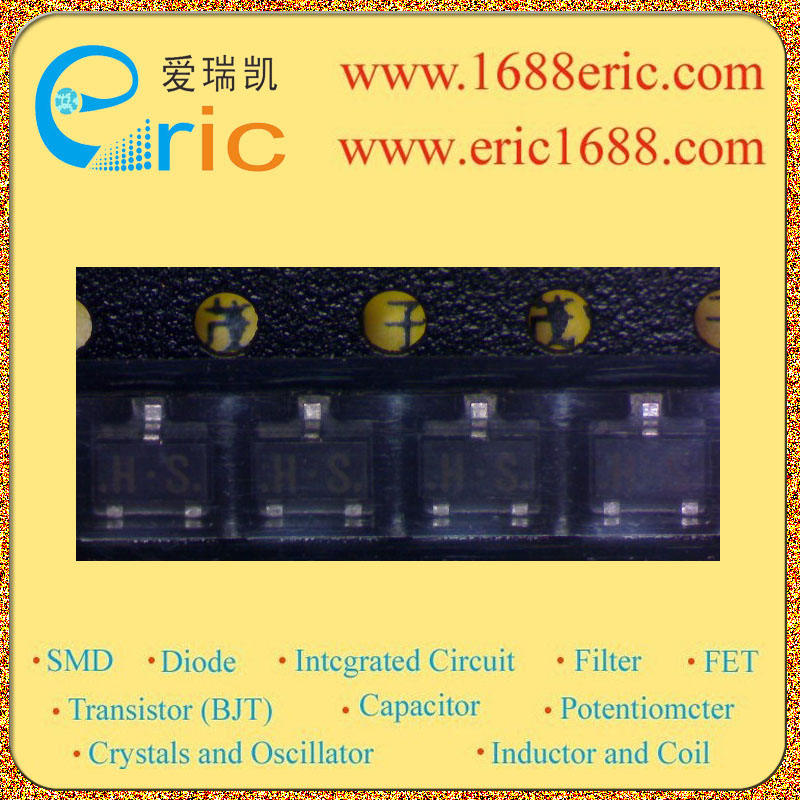

2SA1035-S
 型号:  2SA1035-S
 标记/丝印/代码/打字:  HS
 厂家:  Panasonic
 封装:  SOT-23/SC-59
 批号:  03+
 库存数量:  70600
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  PNP
 技术文档PDF:  在线阅读

 在线购买

2SA1035-S HS 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) -55V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) -55V
集电极连续输出电流IC Collector Current(IC) -50mA
截止频率fT Transtion Frequency(fT) 200MHz
直流电流增益hFE DC Current Gain(hFE) 260~520
管压降VCE(sat) Collector-Emitter SaturationVoltage ?700mV/-0.7V
耗散功率Pc PoWer Dissipation 200mW/0.2W
Description & Applications Silicon PNP epitaxial planer type Features Low noise voltage NV. High foward current transfer ratio hFE. Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing
描述与应用 硅PNP外延刨床类型 特点 低噪声电压NV。 高正向电流传输比HFE。 迷你型包装,让精简的设备和通过自动插入带包装盒包装
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
2SA1034 FS Panasonic 03+ROHS SOT-23/SC-59 9000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1034 FR Panasonic 05+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1034 FS Panasonic 05+ SOT-23/SC-59 1300 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1034 FT Panasonic 05+ SOT-23/SC-59 300 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1034 FT Panasonic 05+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1035-S HS Panasonic 03+ SOT-23/SC-59 70600 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1035-S H.S Panasonic 05+ SOT-23/SC-59 90000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1035-T HT Panasonic 05+ SOT-23/SC-59 8000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1036K T146Q HQ ROHM 05+ SOT-23/SC-59/SMT3 6000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1036K T146R HR ROHM 05+ROHS SOT-23/SC-59/SMT3 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1036K T146P HP ROHM 05+ SOT-23/SC-59/SMT3 9000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1036K T146Q HQ ROHM 05+ROHS SOT-23/SC-59/SMT3 70990 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1036K T146R HR ROHM 05+ SOT-23/SC-59/SMT3 3200 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1036K 2F CHENMKO 03+ SOT-23/SC-59 3000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1037AK T146Q FQ ROHM 08+ROHS SOT-23/SC-59/SMT3 111000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1037AK T146R FR ROHM 05+ SOT-23/SC-59/SMT3 51000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1037AK T146E DE ROHM 05+ SOT-23/SC-59/SMT3 3000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1037AK T146Q FQ ROHM 05+ROHS SOT-23/SC-59/SMT3 81700 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1037K T146R DR ROHM 05+ SOT-23/SC-59/SMT3 3200 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA1037K T146E DE ROHM 05+ SOT-23/SC-59/SMT3 200 三极管Bipolar Junction Transistors(BJT)-PNP 查看
