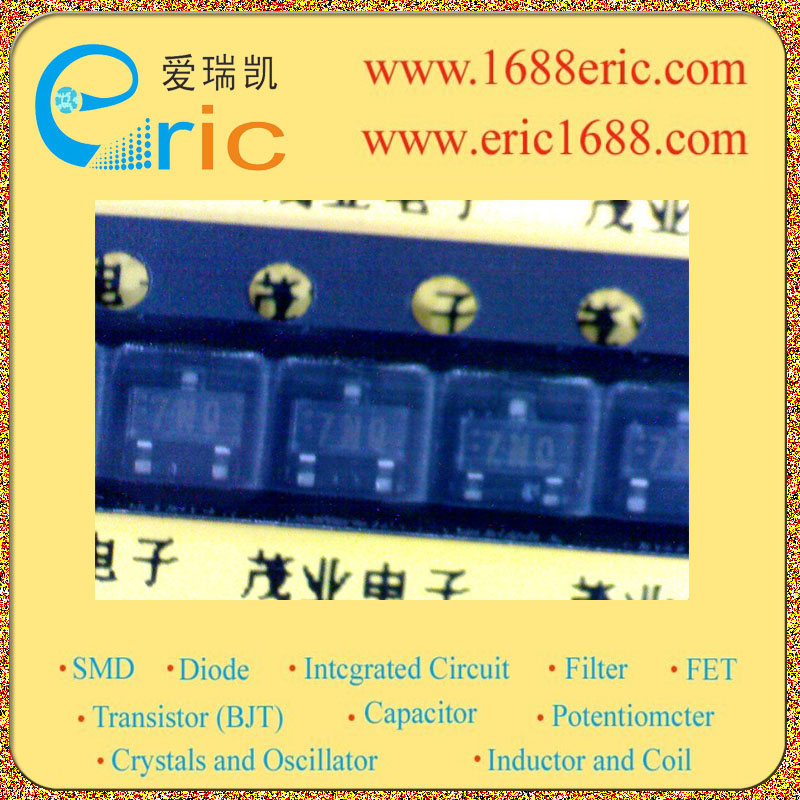

2SA20840QL 7NQ 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-300V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?300V |
| 集电极连续输出电流IC
Collector Current(IC) |
-70mA |
| 截止频率fT
Transtion Frequency(fT) |
50MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
60~150 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
?600mV/-0.6V |
| 耗散功率Pc
PoWer Dissipation |
200mW/0.2W |
| Description & Applications |
PNP Silicon epitaxial planar type For general amplification Features ? High forward current transfer ratio hFE ? Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. |
| 描述与应用 |
PNP硅外延平面型 对于一般的放大 特点 ?高正向电流传输比HFE ?迷你型包装，使瘦身带包装盒包装的设备和通过自动插入。 |
