2SA812-L
 型号:  2SA812-L

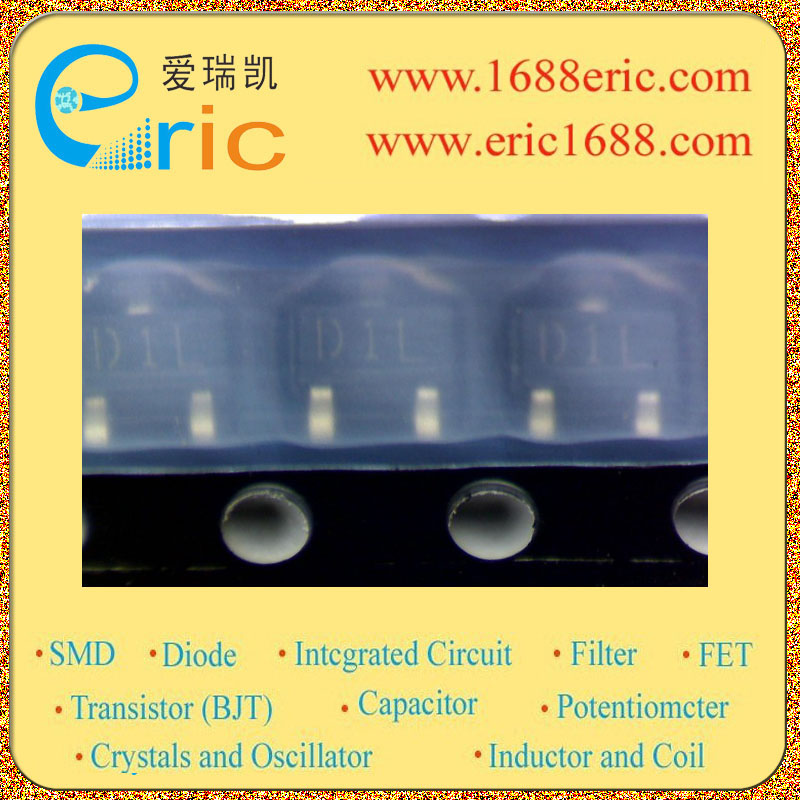

 标记/丝印/代码/打字:  D1L
 厂家:  SAMSUNG
 封装:  SOT-23/SC-59
 批号:  01+
 库存数量:  0
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  PNP
 技术文档PDF:  暂时未能提供

 在线购买

2SA812-L D1L 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) -60V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) ?50V
集电极连续输出电流IC Collector Current(IC) ?100mA/-0.1A
截止频率fT Transtion Frequency(fT) 180MHz
直流电流增益hFE DC Current Gain(hFE) 90~600
管压降VCE(sat) Collector-Emitter SaturationVoltage -300mV/-0.3V
耗散功率Pc PoWer Dissipation 200mW/0.2W
Description & Applications PNP Silicon epitaxial planar type Features Complementary to 2SC1623 High DC Current Gain High Voltage
描述与应用 PNP硅外延平面型 特点 互补型2SC1623 高DC电流增益 高电压
技术文档PDF下载 暂时未能提供



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
2SA812 M4 NEC 04+ SOT-23/SC-59 9000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812 M5 NEC 05+12KROHS SOT-23/SC-59 105000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812 M6 NEC 08+ROHS SOT-23/SC-59 3000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812 M7 NEC 08+ROHS SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812 M4 NEC 03+ SOT-23/SC-59 10530 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812 M6 NEC 05+ROHS800 SOT-23/SC-59 108900 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812 M7 NEC 05+ SOT-23/SC-59 1750 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812 M5 NEC 05+ROHS SOT-23/SC-59 137950 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812H M6 NEC 02+ SOT-23/SC-59 1700 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812-L D1L SAMSUNG 01+ SOT-23/SC-59 0 三极管Bipolar Junction Transistors(BJT)-PNP 查看
L2SA812RL M6 LRC 03+ SOT-23/SC-59 12000 三极管Bipolar Junction Transistors(BJT)-PNP 查看
L2SA812SLT1G M7 LRC 03+ SOT-23/SC-59 1500 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812-M7 M7 台产 05+ SOT-23 2500 三极管Bipolar Junction Transistors(BJT)-PNP 查看
2SA812-L(A812-L) D1L SAMSUNG 05+ SOT-23/SC-59 9000 三极管Bipolar Junction Transistors(BJT) 查看
