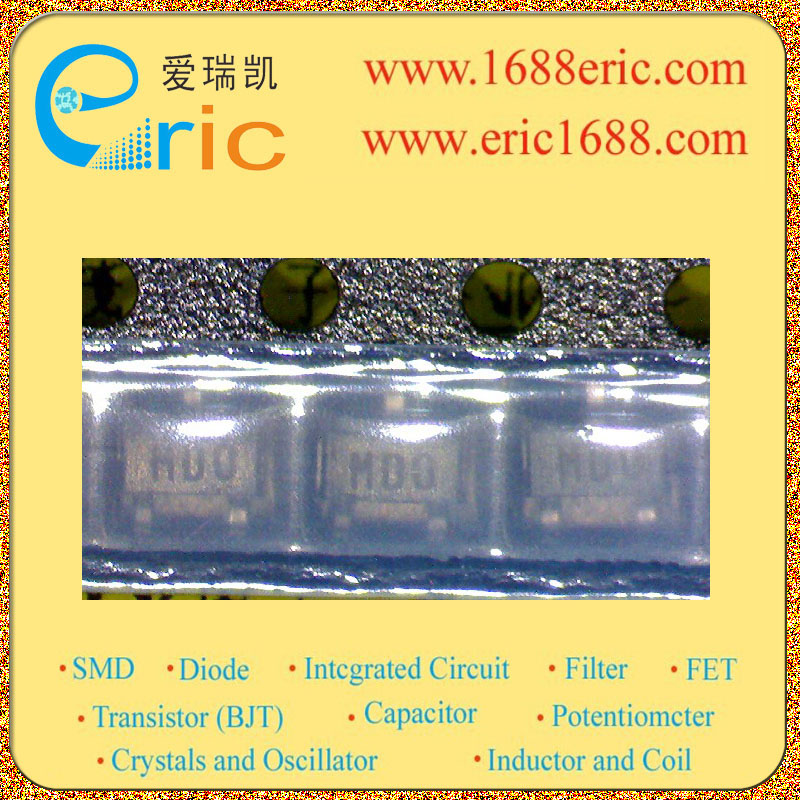

2SC5089-O MDO 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
20V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
8V |
| 集电极连续输出电流IC
Collector Current(IC) |
40mA |
| 截止频率fT
Transtion Frequency(fT) |
10Ghz |
| 直流电流增益hFE
DC Current Gain(hFE) |
50~100 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc
Power Dissipation |
150mW/0.15W |
| Description & Applications |
Silicon NPN epitaxial planar type VHL ~ UHF band low noise amplifier application Features ? High gain |S21e|*2=13db ? Low noise figure NF=1.1db |
| 描述与应用 |
NPN硅外延平面型 ?VHL?UHF频段低噪声放大器的应用 ?特点 ?高增益| S21E|* 2 =13分贝 ?低噪声系数NF=1.1分贝 |
