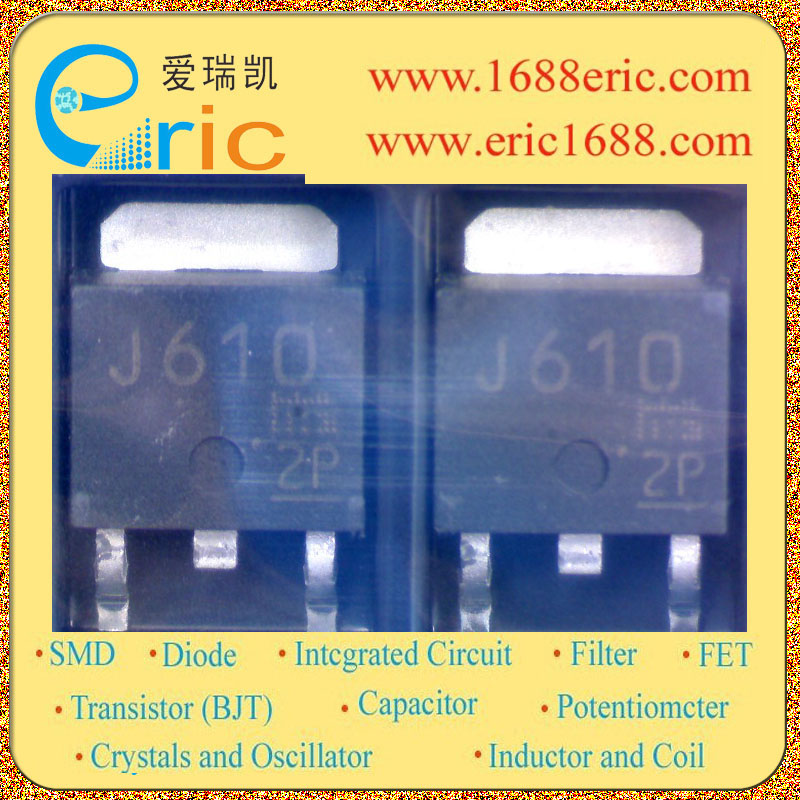

2SJ610 J610 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
-250V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
20V |
| 最大漏极电流Id
Drain Current |
-2A |
| 源漏极导通电阻Rds
Drain-Source On-State
Resistance |
1.85Ω @-10A,-10V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
-1.5--3.5V |
| 耗散功率Pd
Power Dissipation |
20W |
| Description & Applications |
Features ?Low drain-source ON resistance: RDS (ON) = 1.85 ? (typ.) ?High forward transfer admittance: ?Yfs? = 1.8 S (typ.) ? Low leakage current: IDSS = ?100 μA (VDS = ?250 V) ? Enhancement-mode: Vth = ?1.5~?3.5 V (VDS = 10 V, ID = 1 mA) |
| 描述与应用 |
?低漏源导通电阻RDS（ON）= 1.85Ω（典型值） ?高正向转移导纳：?的YFS?=1.8 S（典型值） ?低漏电流：IDSS=-100μA（VDS=-250 V） ?增强模式：VTH=-1.5?-3.5 V（VDS=10V，ID=1毫安） |
