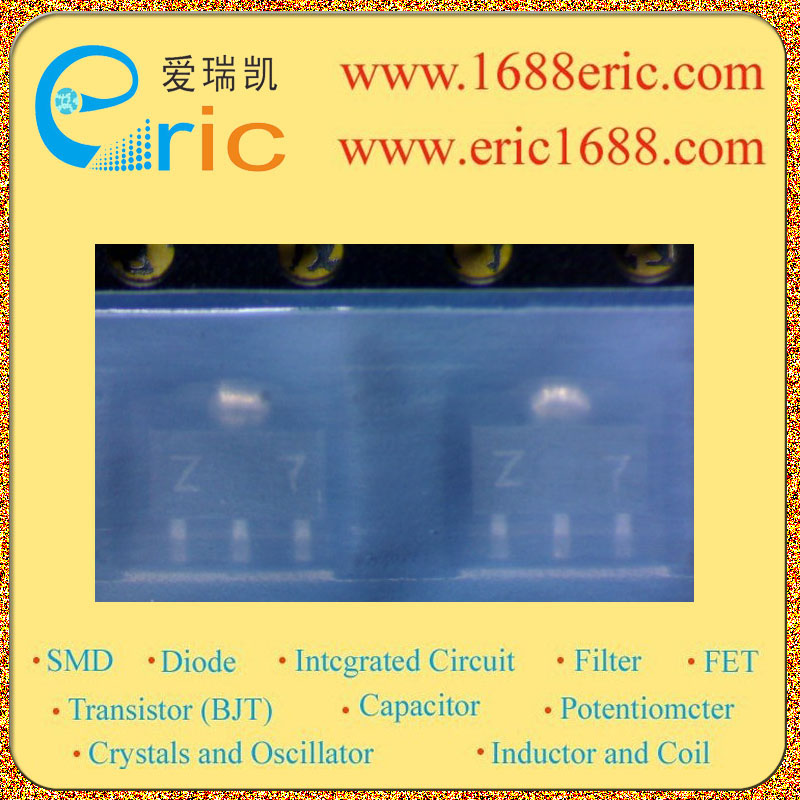

2SK2549 Z7 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
16V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
8V |
| 最大漏极电流Id
Drain Current |
2A |
| 源漏极导通电阻ΩRds
DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance |
0.22Ω/Ohm @1A,4V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
0.5-1.1V |
| 耗散功率Pd
Power Dissipation |
500mW/0.5W |
| Description & Applications |
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π?MOSV) DC?DC Converter, Relay Drive and Motor Drive Applications Features Silicon N-channel MOS FET DC?DC Converter, Relay Drive and Motor Drive Applications 2.5 V gate drive Low drain?source ON resistance High forward transfer admittance Low leakage current Enhancement?mode |
| 描述与应用 |
东芝场效应晶体管的硅N沟道MOS类型（π-MOSV） DC-DC转换器，继电器驱动和电机驱动应用 特性 硅N沟道MOS FET DC-DC转换器，继电器驱动和电机驱动应用 2.5 V门驱动 低漏源导通电阻 高正向转移导纳 低漏电流 增强型 |
