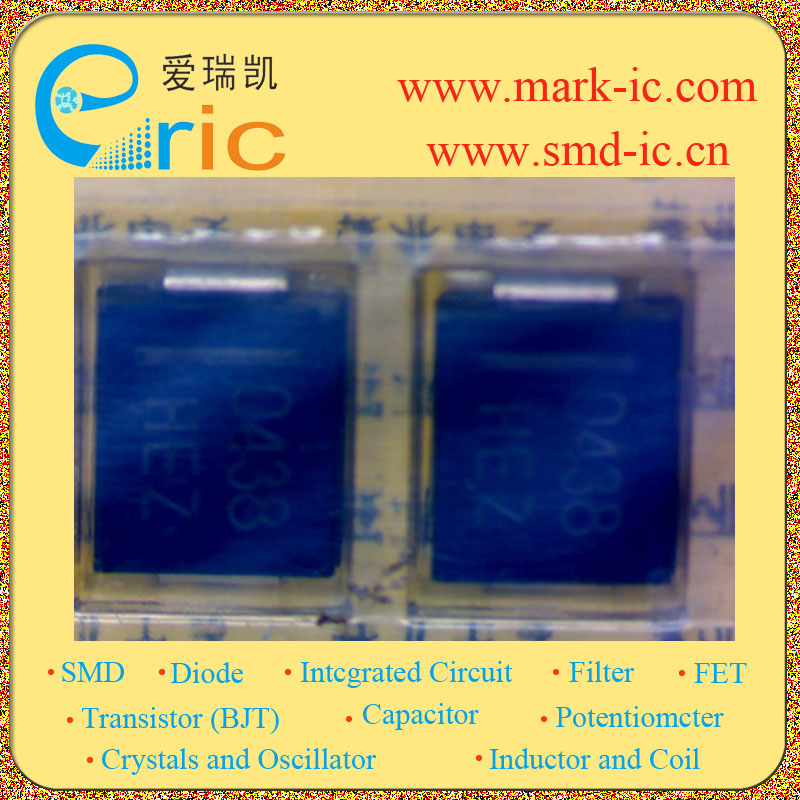

3.0SMCJ24A HEZ 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
24V |
| 反向击穿电压VBR
Breakdown Voltage |
28.1V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
3000W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
77.2A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
3000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS；Features ? Glass passivated die construction ?3000W peak pulse power dissipation ? 5.0V-170V standoff voltage ?Uni- and Bi-Directional versions available ?Excellent clamping capability ?Fast response time ?Plastic case material has UL Flammability classification rating 94V-O ?UL recongnized file #E224235 |
| 描述与应用 |
3000W表面贴装瞬态电压抑制器;特性 ?玻璃钝化芯片结构 ?3000W峰值脉冲耗散功耗 ?关断电压5.0V-170V ?单向和双向可用版本 ?出色的钳位能力 ?快速响应时间 ?塑料外壳材料具有UL可燃性分类等级94V-O ?UL认证文件＃E224235 |
