74HC1G66GW HL 的参数 |
| 开关配置
Circuit |
单刀单掷 1*SPST |
| 导通电阻
On-State Resistance |
70Ω/Ohm |
| 电源电压
Voltage - Supply |
2V~10V |
| Description & Applications |
Single-pole single-throw analog switch 74HC1G66 is high-speed Si-gate CMOS devices. It is single-pole single-throw analog switche. The switch has two input/output pins (Y and Z) and an active HIGH enable input pin (E). When pin E is LOW, the analog switch is turned off. The non-standard output currents are equal to those of the 74HC4066 and 74HCT4066. |
| 描述与应用 |
单刀单掷模拟开关 74HC1G66和74HCT1G66是高速硅栅CMOS器件。他们是单刀 单掷模拟开关。该开关有两个输入/输出引脚（Y和Z）和一个 高电平有效使能输入引脚（E）。当引脚E为低时，模拟开关被关闭。 非标准输出电流与74HC4066和74HCT4066相同。 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

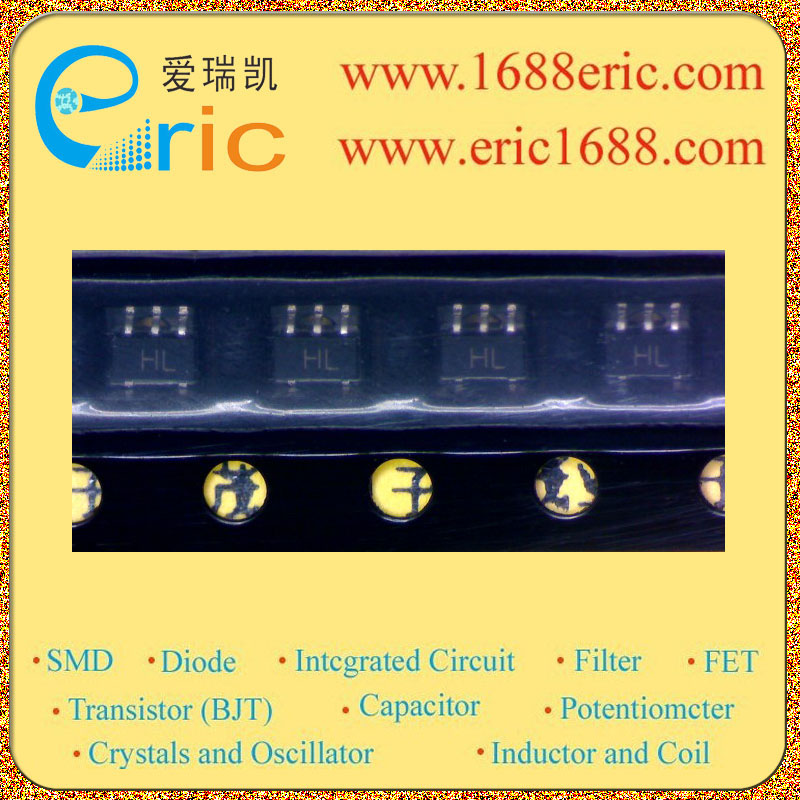

| 74HC1G66GW |
HL |
NXP/PHILIPS |
05+ |
SOT-353/SC70-5 |
0 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
| 74HC1G66GW |
HL |
NXP/PHILIPS |
05+ |
SOT-353/SC70-5 |
0 |
集成电路ICIntegrated Circuit（IC）-开关ICSwitch IC-模拟开关Analog Switch |
查看 |
|
|
|
