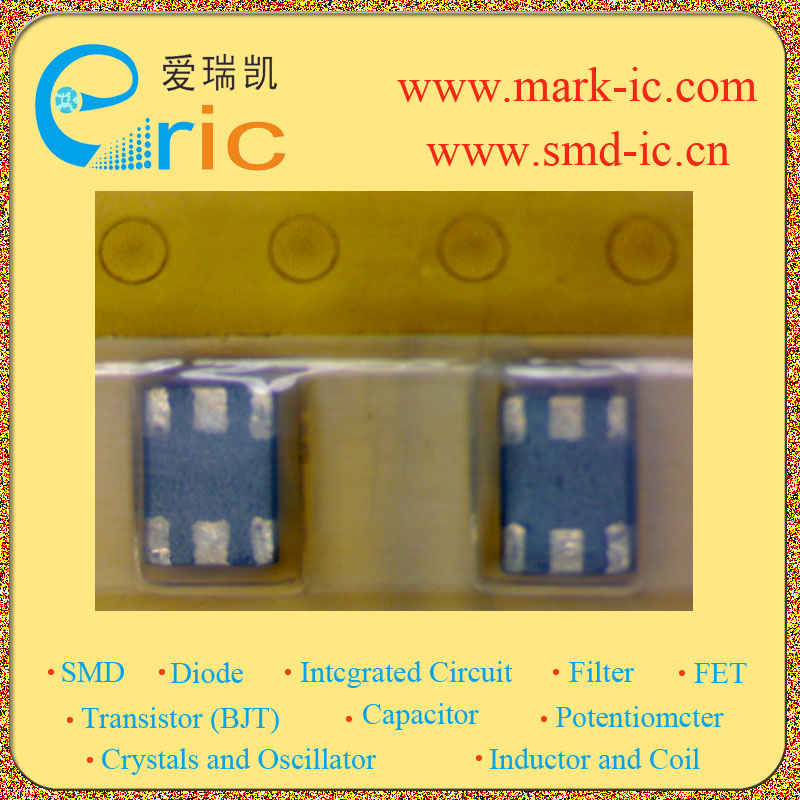

ACM4532-102-3P 的参数 |
| 线路数
Number of Lines |
3 |
| 电感值
Inductance |
|
| 电流
Current |
200mA |
| 电阻DCR
DC Resistance (DCR) |
0.6R |
| 阻抗
Impedance |
1000R |
| Description & Applications |
FEATURES ? A chip-type common mode filter for large current applications. Common mode impedance surpasses 300 to 1000? at 100MHz. Noise is greatly suppressed. ? Capable of handling the highest current (up to 10A) of any chiptype common mode filter. ? Height and size have been considered, resulting in a compact and light-weight choke coil. Applicable for the miniaturization required to reduce the size and weight of portable equipment. ? The products contain no lead and also support lead-free soldering. ? This product does not contain regulated substances that are slated to be included in RoHS. APPLICATIONS Used for power line noise suppression for any electronic devices Used to counter adapter/battery line noise for relatively large electronic devices such as notebook PCs, stand-alone word processors, etc |
| 描述与应用 |
|
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| ACM4532-102-3P |
|
TDK |
05+ |
4532-102 |
0 |
电感Inductor/Coil/Choke-共模电感Common Mode Choke |
查看 |
| ACM4532-102-3P |
|
TDK |
05+ |
4532-102 |
0 |
电感Inductor/Coil/Choke-共模电感Common Mode Choke |
查看 |
|
|
|
