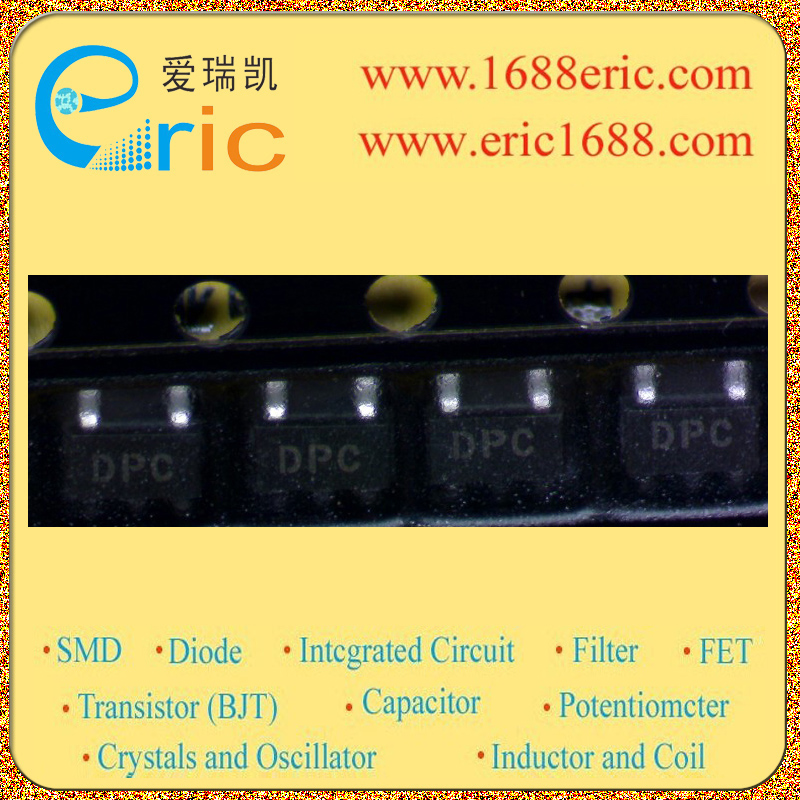

ADP3309ART-3-REEL7 DPC 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
3.2~12V |
| 输出电压VOUT
Voltage - Output |
3V |
| 输出电流Io
Current - Output |
100mA/0.1A |
| 最大压降VDO
Voltage - Dropout |
400mV/0.4V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
无 No |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
High Accuracy anyCAP? 200 mA Low Dropout Linear Regulator ;?High Accuracy Over Line and Load 60.8% @ at +258C,61.4% Over Temperature ?Ultralow Dropout Voltage: 180 mV (Typ) @ 200 mA ?Requires Only CO = 0.47 mF for Stability any CAP = Stable with All Types of Capacitors (Including MLCC) ?3.2 V to 12 V Supply Range ?Current and Thermal Limiting ?Low Noise ?Dropout Detector ?Low Shutdown Current: < 1 mA ?Thermally Enhanced SO-8 Package ?Excellent Line and Load Regulation Performance ?Cellular Telephones ?Notebook, Palmtop Computers ?Battery Powered Systems ?Portable Instruments ?Post Regulator for Switching Supplies ?Bar Code Scanners |
| 描述与应用 |
高精度的anyCAP? 200 mA低压差线性稳压器;?高精度过温在258℃以上的线路和负载60.8％，61.4％ ?超低压差电压：180毫伏（典型值）200毫安 ?只需要CO= 0.47 MF稳定性CAP =稳定与所有类型的电容器 （包括MLCC） ?3.2 V至12 V电源电压范围 ?电流和热限制 ?低噪声 ?漏失探测器 ?低关断电流：<1毫安 ?耐热增强型SO-8包装 ?出色的线路和负载调节性能 ?蜂窝电话 ?笔记本电脑，掌上电脑 ?电池供电系统 ?便携式仪器 ?稳压开关电源 ?条码扫描器 |
| 技术文档PDF下载 |
在线阅读  |
