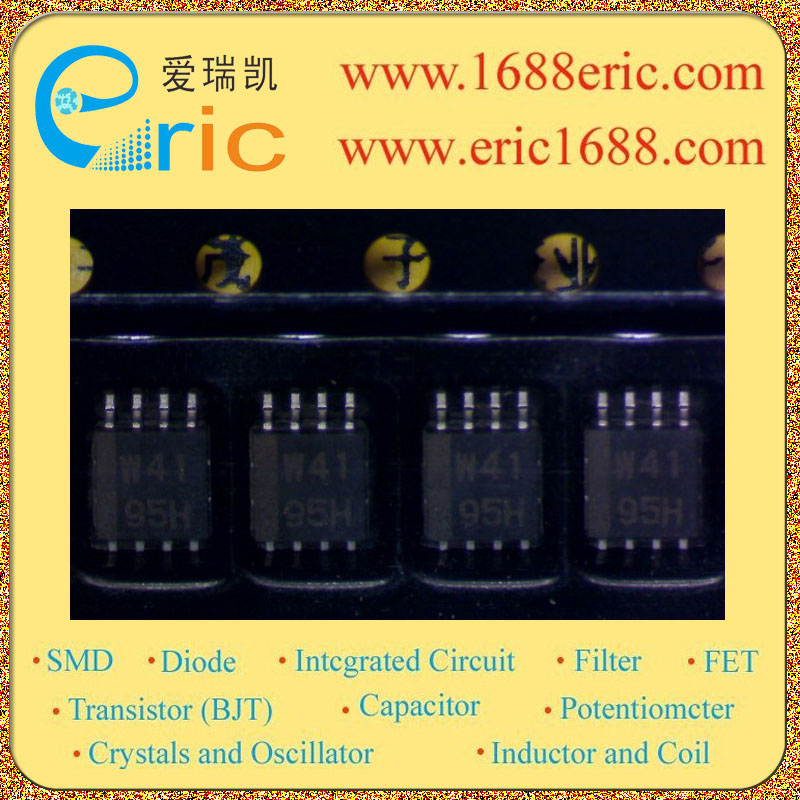

型号： |
AHC2G241HDCTR-1 |
| 标记/丝印/代码/打字： |
W41 |
| 厂家： |
TEXAS |
| 封装： |
DCT8 |
| 批号： |
05+ |
| 库存数量： |
3700 |
| 所属分类： |
集成电路ICIntegrated Circuit（IC）
逻辑电路Logic circuit
缓存与线路驱动器Buffer/Line Driver |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
AHC2G241HDCTR-1 W41 的参数 |
| 类型
Type |
非反相 Non-Inverting |
| 元件数
Number of Elements |
2 |
| 每元件位数
Number of Bits per Element |
1 |
| 电源电压
Voltage - Supply |
2 V ~ 5.5 V |
| 输出高电平，低电平电流
Current - Output High, Low |
8mA，8mA |
| Description & Applications |
a dual buffers/line drivers with 3-state outputs. two 1-bit buffers/line drivers with separate output-enable(1OE and 2OE)inputs. when 1OE is low or 2OE is high,the device passes noninverted data from the A inputs to the Y outputs. when 1OE is high or 2OE is low, the outputs for the respective buffers/line drivers are in the high-impedance state. |
| 描述与应用 |
一个双缓冲器/线路驱动器与3态输出。 两个1位缓冲器/线路驱动器，具有单独的输出使能（1OE和2OE）投入。 1OE低或2OE高时，该设备通过非反相数据从A输入到Y输出。 1OE高或2OE低时，是在为各自的的缓冲器/线路驱动器输出高阻抗状态。 |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| AHC2G241HDCKR |
W41 |
TEXAS |
05+ |
DCT8 |
400 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
| AHC2G241HDCTR-1 |
W41 |
TEXAS |
05+ |
DCT8 |
3700 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
| SN74AHC2G241HDCTR |
W41 |
TEXAS |
05+ |
DCT8 |
5400 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
| SN74AHC2G241HDCUR |
41AH |
TEXAS |
05+ |
VSSOP8/US8 |
9000 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
| SN74AHC2G241HDCUR |
41AH |
TEXAS |
05+ |
VSSOP8/US8 |
0 |
集成电路ICIntegrated Circuit（IC）-逻辑电路Logic circuit-缓存与线路驱动器Buffer/Line Driver |
查看 |
|
|
|
