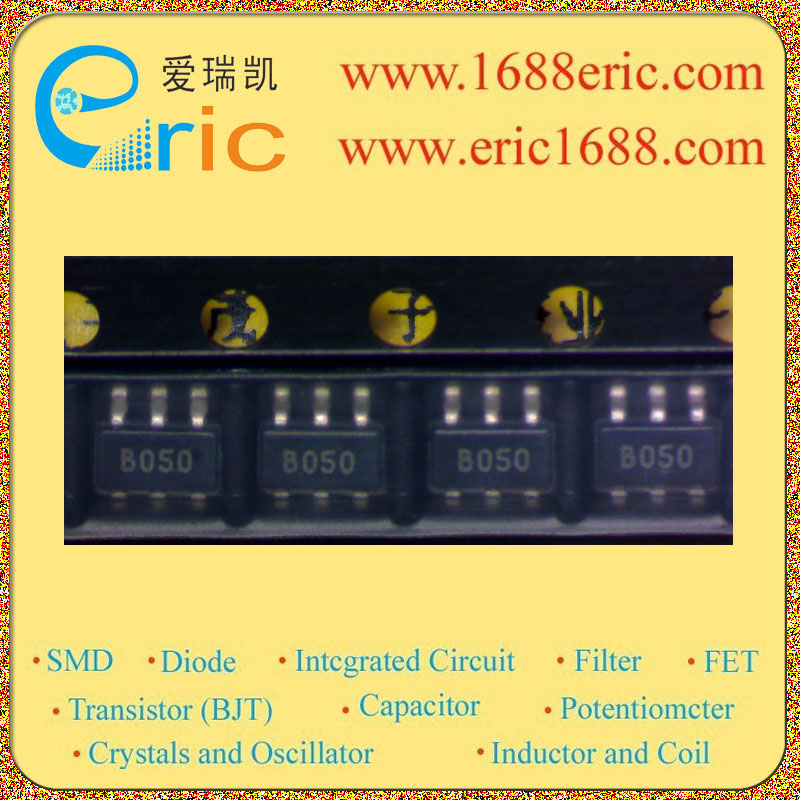

AIC1845CG B050 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
2.7~5V |
| 输出电压VOUT
Voltage - Output |
5V |
| 输出电流Io
Current - Output |
60mA |
| 最大压降VDO
Voltage - Dropout |
|
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
无 No |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
Regulated 5V Charge Pump In SOT-23 ;?Ultralow Power:IN = 13μA ?Regulated 5V ±4% Output Voltage ? Output Current: 100mA (VIN =3.3V) 110mA (VIN =3.6V) ? Input Range: 2.7V to 5.0V ?Very Low Shutdown Current: <1μA ? Internal Oscillator: 650KHz ? Short-Circuit and Overtemperature Protection ?6-Pin SOT-23 Package ?White or Blue LED Backlighting ?SIM Interface Supplies for Cellular Telephones ? Li-Ion Battery Backup Supplies ?Smart Card Readers |
| 描述与应用 |
5V稳压电荷泵在SOT-23;?超低功耗：IN=13μA ?稳压5V±4％的输出电压 ?输出电流：100mA（VIN=3.3V）110毫安（VIN=3.6V） ?输入电压范围：2.7V至5.0V ?非常低停机电流：<1μA ?内部振荡器：650kHz的 ?短路和过热保护 ?6引脚SOT-23封装 ?白色或蓝色LED背光 ?蜂窝电话的SIM接口用品 ?锂离子电池备用电源 ?智能卡读卡器 |
