BAP1321-03 V8 的参数 |
| 反向电压VR
Reverse Voltage |
60V |
| 平均正向整流电流IF
Forward Current(If) |
100mA/0.1A |
| 二极管电容值CT
Diode capacitance |
0.25pF |
| 最大耗散功率Pd
Power dissipation |
500mW/0.5W |
| Description & Applications |

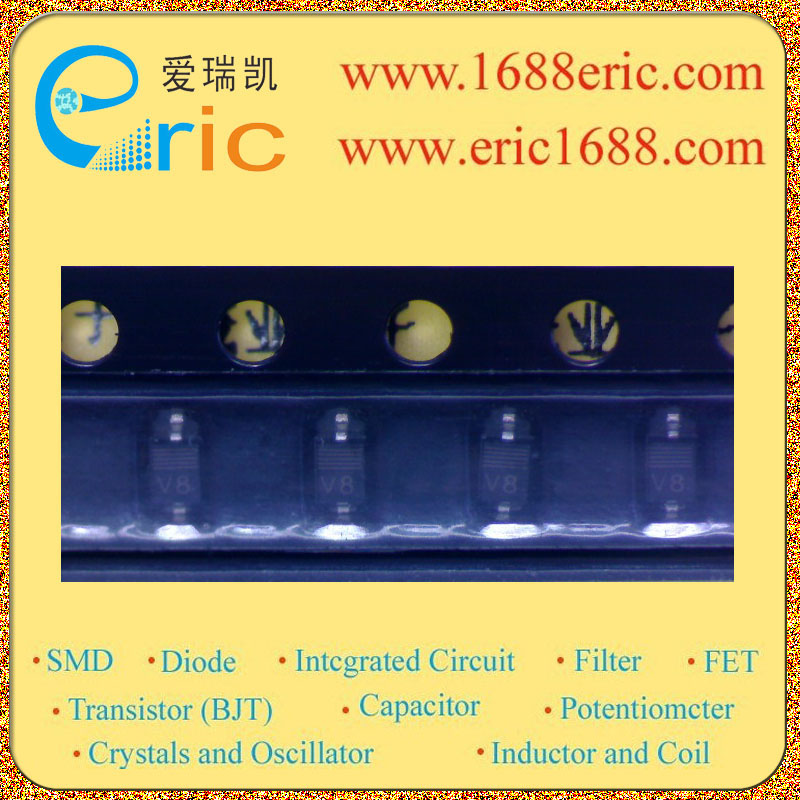

Silicon PIN diode FEATURES ? High voltage, current controlled ? RF resistor for RF attenuators and switches ? Low diode capacitance ? Low diode forward resistance ? Very low series inductance ? For applications up to 3 GHz. APPLICATIONS ? RF attenuators and switches. DESCRIPTION Planar PIN diode in a SOD323 (SC-76) ultra small SMD plastic package. |
| 描述与应用 |
硅PIN二极管 特点 ?高电压，电流控制 ?RF电阻RF衰减器和开关 ?低电容二极管 ?低二极管的正向电阻 ?非常低的串联电感 应用 ? RF衰减器和开关 |
