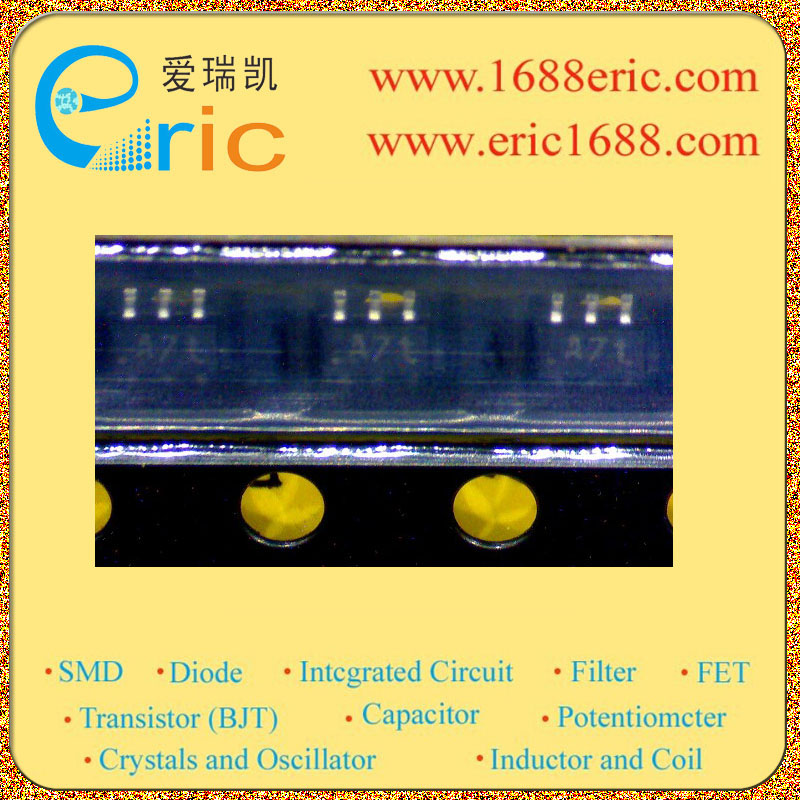

BAV756S A7 的参数 |
| 反向电压Vr
Reverse Voltage |
90V |
| 平均整流电流Io
Average Rectified Current |
250mA/0.25A |
| 最大正向压降VF
Forward Voltage(Vf) |
1.25V |
| 反向恢复时间Trr
Reverse Recovery Time |
4NS |
| 最大耗散功率Pd
Power Dissipation |
350mW/0.35W |
| Description & Applications |
FeAtures ? High-speed switching diodes ? High switching speed: trr ≤ 4 ns ? Low cApAcitAnce: Cd ≤ 2 pF ? Low leAkAge current ? ReVerse VoltAge: VR ≤ 90 V ? SmAll SmD plAstic pAckAges ApplicAtions ? High-speed switching ? GenerAl-purpose switching |
| 描述与应用 |
特点 ?高速开关二极管 ?高开关速度：TRR≤4 NS ?低电容：镉≤2 PF ?低漏电流 ?反向电压VR≤90 V ?小型塑料SmD封装 应用 ?高速开关 ?通用开关 |
