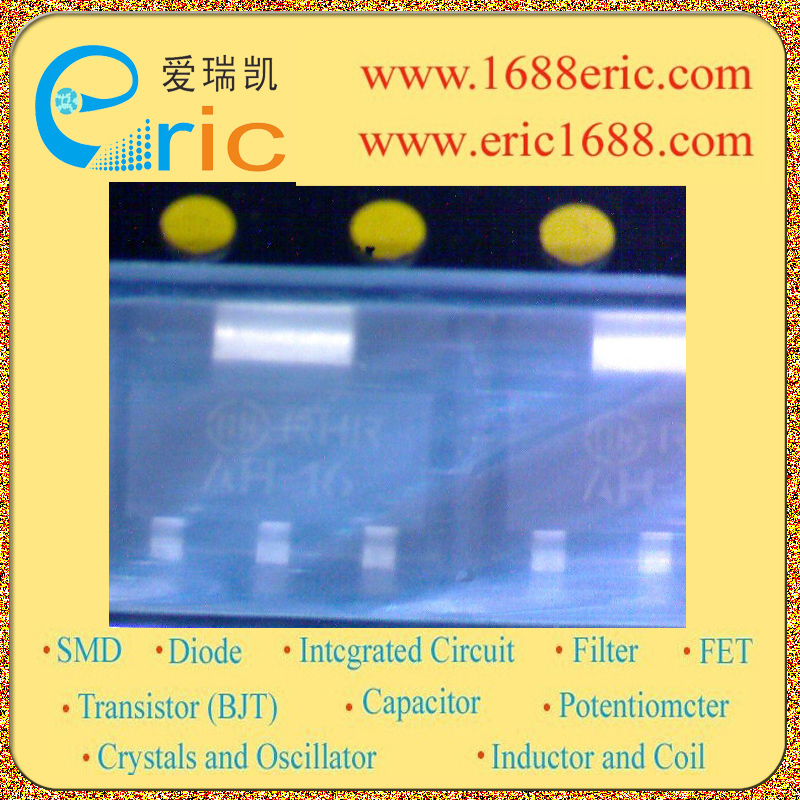

BCP53-16 AH-16 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
?100V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
?80V |
| 集电极连续输出电流IC
Collector Current(IC) |
-1.5A |
| 截止频率fT
Transtion Frequency(fT) |
50MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
100~250 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
?500mV/-0.5V |
| 耗散功率Pc
PoWer Dissipation |
1.5W |
| Description & Applications |
PNP Silicon Epitaxial Transistors This PNP Silicon Epitaxial transistor is designed for use in audio amplifier applications. The device is housed in the SOT?223 package which is designed for medium power surface mount applications. ? High Current: 1.5 A ? NPN Complement is BCP56 ? The SOT?223 Package can be soldered using wave or reflow. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die ? AEC?Q101 Qualified and PPAP Capable ? S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements ? These Devices are Pb?Free, Halogen Free/BFR Free and are RoHS Compliant |
| 描述与应用 |
外延晶体管 这PNP硅外延晶体管是专为音频放大器应用中使用。该设备是设在SOT-223封装，是专为中等功率表面贴装应用。 ?高电流：1.5 A ?NPN补BCP56 ?SOT-223包装可以使用波或回流焊接。所形成的线索在焊接热应力吸收，消除模具损坏的可能性 ?通过AEC-Q101认证和PPAP能力 ?S前缀为汽车和其他应用程序需要独特的网站和控制变更要求 ?这些器件是无铅，无卤/ BFR免费，并符合RoHS标准 |
