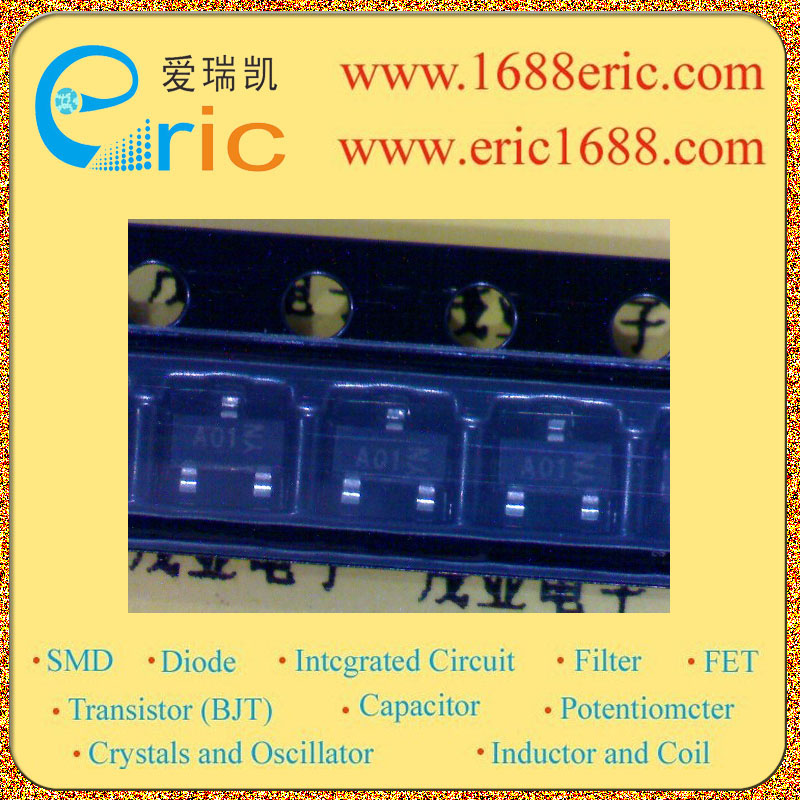

DLPT05-7-F A01 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
300W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
17A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |
SURFACE MOUNT DATA LINE PROTECTION DEVICE;Features ? 300 Watts Peak Pulse Power (tp = 8x20μs) ? Transient Protection for data line to IEC61000-4-2 level 4 (ESD), 8kV HBM Contact: Discharge – ±30kV Air: Discharge – ±30kV ? IEC 61000-4-4 (EFT) ? Low Leakage Current ? Surface Mount Package Ideally Suited for Automated Insertion ? Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device |
| 描述与应用 |
表面贴装数据线保护装置;特性 ?300瓦峰值脉冲功率（TP =8x20μs） ?暂态保护数据线IEC61000-4-2第4级（ESD），8kV的HBM 接触：放电 - ±30KV 空气放电 - ±30KV ?IEC61000-4-4（EFT） ?低漏电流 ?表面贴装包装非常适合自动插入 ?铅，卤素和无锑，符合RoHS标准 “绿色”设备 |
