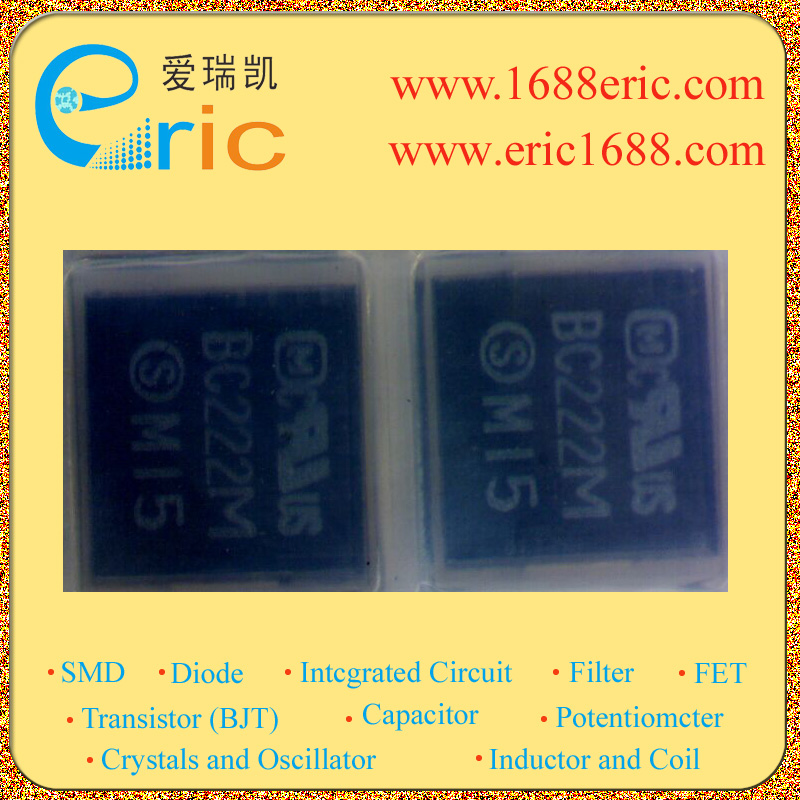

型号： |
ECKTBC222ME |
| 标记/丝印/代码/打字： |
BC222M |
| 厂家： |
Panasonic |
| 封装： |
SMC/DO-214AB |
| 批号： |
05+ |
| 库存数量： |
13000 |
| 所属分类： |
电容Capacitor
高压瓷片电容High Voltage Ceramic Capacitor |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
ECKTBC222ME BC222M 的参数 |
| 电容值
Capacitance |
220pF |
| 容差
Tolerance |
±20% |
| 额定电压
Voltage Rating |
250V |
| Description & Applications |
Features Resin molded SMD type for re? ow solderings High reliability through use of disc capacitor element Wide rated voltage ranges from 1 kV to 5 kV, through a disc element which withstand high voltage and outcurve terminals Wide rated voltage range 1 to 5 kV Recommended Application Ballast circuit of LCD backlighting inverter (For 3 to 5 kVDC Char.SL/GP) Snubber circuit of switching power supply (For 1 to 2 kVDC Char.B/Y5P) |
| 描述与应用 |
特点 ?树脂成型SMD型回流焊接过程 通过使用光盘电容器元件的高可靠性 ?宽的额定电压范围的1 kV至5千伏，通过 盘元件承受高电压和outcurve 终端 额定电压范围宽1至5千伏 推荐应用 ?LCD背光逆变器的镇流器电路 ????（3至5 KVDC的Char.SL/ GP） 缓冲电路的开关电源 ????（为12 KVDC Char.B/Y5P） |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
