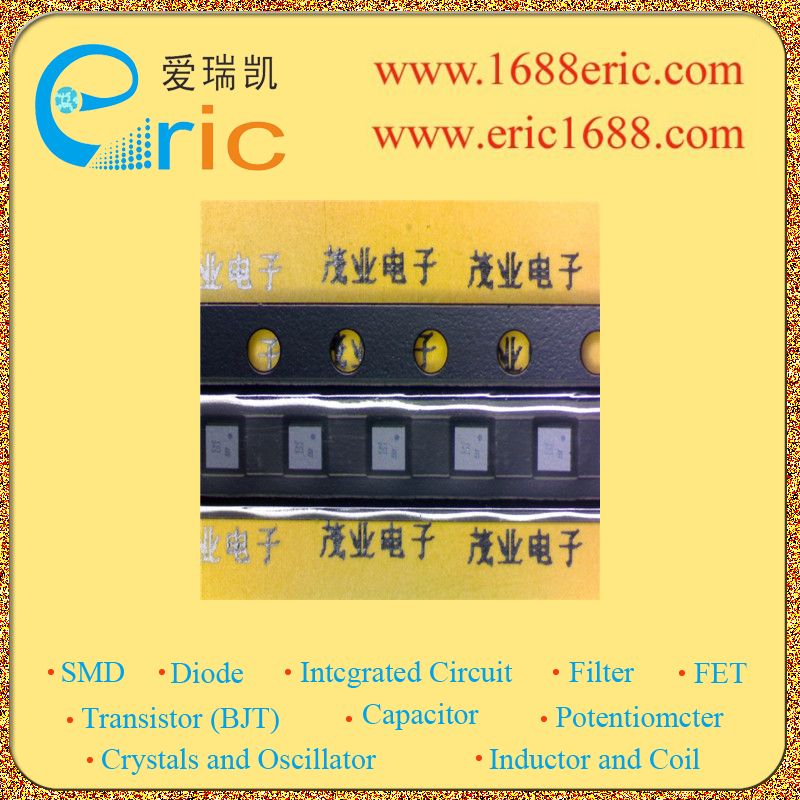

型号： |
EMIF03-SIM01 |
| 标记/丝印/代码/打字： |
|
| 厂家： |
ST |
| 封装： |
2520-8点2520-8 |
| 批号： |
04+ |
| 库存数量： |
6000 |
| 所属分类： |
晶振滤波Crystal Oscillator and Filter
滤波Filter
EMI |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
EMIF03-SIM01 的参数 |
| 类型
Type |
低通 Low Pass |
| 技术
Technology |
RC |
| 通道数
Number of Channels |
3 |
| 中心/截止频率
Center / Cutoff Frequency |
|
| 衰减值
Attenuation Value |
|
| 电阻 - 通道 (Ω)
Resistance - Channel (Ohms) |
100Ω |
| 电流
Current |
|
| 数值
Values |
C=35pF |
| ESD 保护
ESD Protection |
是 Yes |
| Description & Applications |
Applications EMI filtering and ESD protection for: SIM interface (subscriber identity module) UIM interface (universal identity module) Description The EMIF03-SIM01F2 is a highly integrated device designed to suppress EMI/RFI noise in all systems subjected to electromagnetic interference. The EMIF03 Flip Chip packaging means the package size is equal to the die size. This filter includes ESD protection circuitry which prevents damage to the application when subjected to ESD surges up 15 kV. |
| 描述与应用 |
应用 EMI滤波和ESD保护： SIM卡接口（用户识别模块） ?UIM卡接口（通用身份识别模块） 描述 EMIF03-SIM01F2的是一款高度集成 旨在抑制EMI/ RFI噪声的设备 系统受电磁 干扰。 EMIF03倒装芯片封装 装置的封装尺寸等于芯片的尺寸。 该过滤器包括ESD保护电路 防止损坏时，应用程序 受到ESD浪涌高达15千伏。 |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
