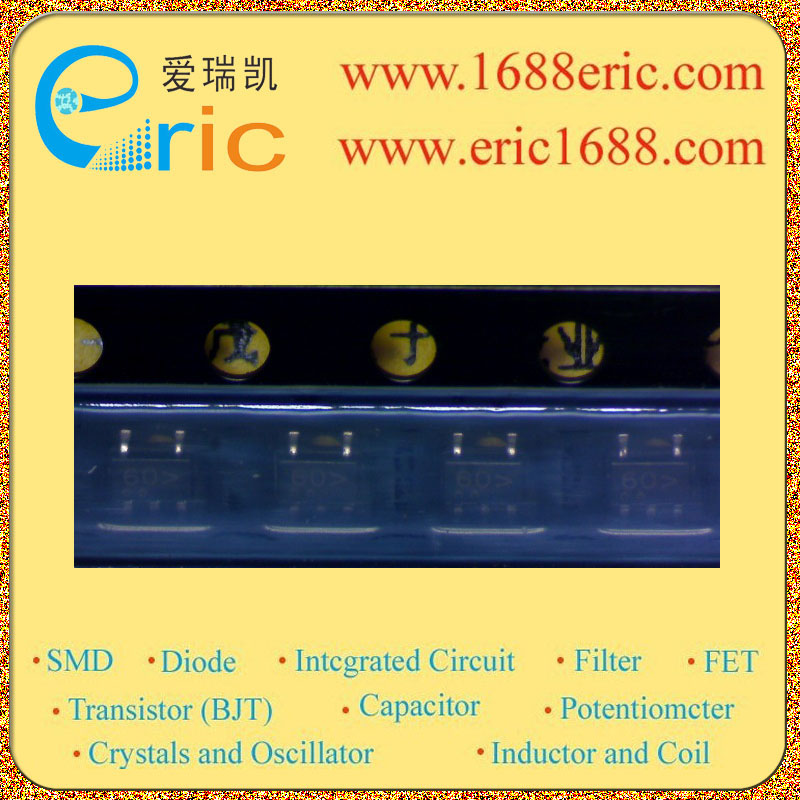

ENGSMF05UTG 60 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
5V |
| 反向击穿电压VBR
Breakdown Voltage |
6.6V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
200W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.385W/385mW |
| Description & Applications |
Quad Array for ESD Protection;Specification Features ? Low Clamping Voltage ? Stand-Off Voltage 5 V ? Low Leakage < 5 uA @ 5 V ? SC?88A Package Allows Four Separate Unidirectional Configurations ? IEC6100?4?2 Level 4 ESD Protection ? Pb?Free Packages are Available |
| 描述与应用 |
四阵列的ESD 保护;规格特性 ?低钳位电压 ?反向关断电压5 V ?低漏<5uA（5 V） ?SC-88A封装允许四个单独的单向 配置 ?IEC6100-4-24级ESD保护 ?无铅包可用 |
