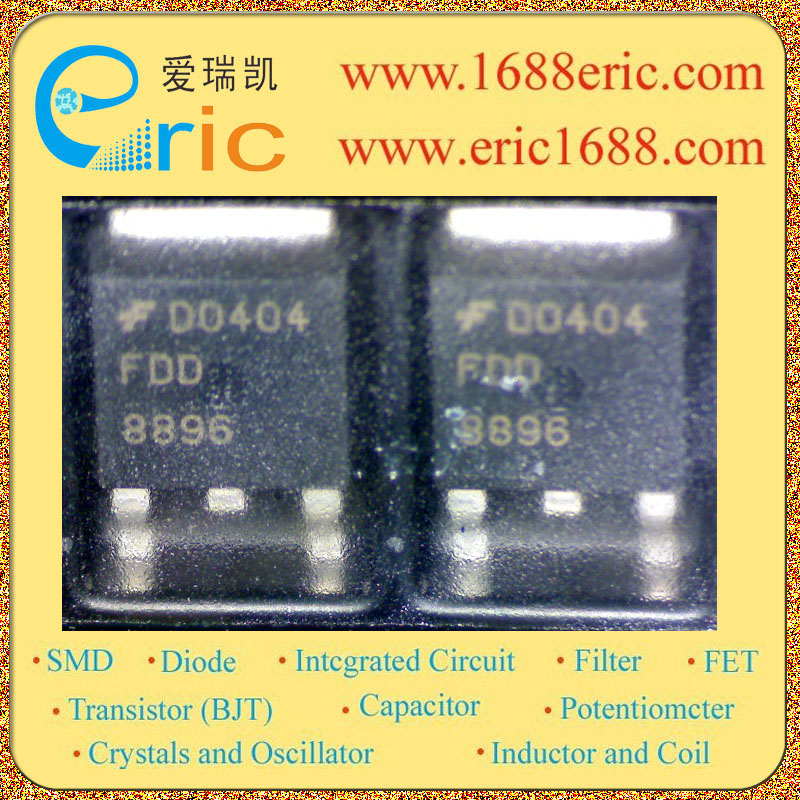

型号： |
FDD8896 |
| 标记/丝印/代码/打字： |
8896 |
| 厂家： |
FAIRCHILD |
| 封装： |
TO-252/D-PAK |
| 批号： |
05+ |
| 库存数量： |
1600 |
| 所属分类： |
场效应管FET
MOSFET-N沟道MOSFET N-Channel |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
FDD8896 8896 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
30V |
| 最大栅源极电压Vgs(±)
Gate-Source Voltage |
20V |
| 最大漏极电流Id
Drain Current |
9.4A |
| 源漏极导通电阻ΩRds
DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance |
0.0057Ω/Ohm @3.5A,10V |
| 开启电压Vgs（th）
Gate-Source Threshold Voltage |
1.2-2.5V |
| 耗散功率Pd
Power Dissipation |
80W |
| Description & Applications |
N-Channel PowerTrench ?MOSFET 30V, 94A, 5.7m? General Description This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low rDS(ON) and fast switching speed. Features ? rDS(ON) = 5.7mW, VGS = 10V, ID = 35A ? rDS(ON)= 6.8mW, VGS = 4.5V, ID = 35A ? High performance trench technology for extremely low DS(ON) ? Low gate charge ? High power and current handling capability |
| 描述与应用 |
N-沟道PowerTrench?MOSFET 30V，94A，5.7mΩ 概述 这N沟道MOSFET已专门设计 提高整体效率的DC / DC转换器 同步或传统开关PWM 控制器。它已被优化的低门电荷，低 RDS（ON）和快速开关速度。 ?高性能沟道技术极低 DS（ON） ?低栅极电荷 ?高功率和电流处理能力 |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
