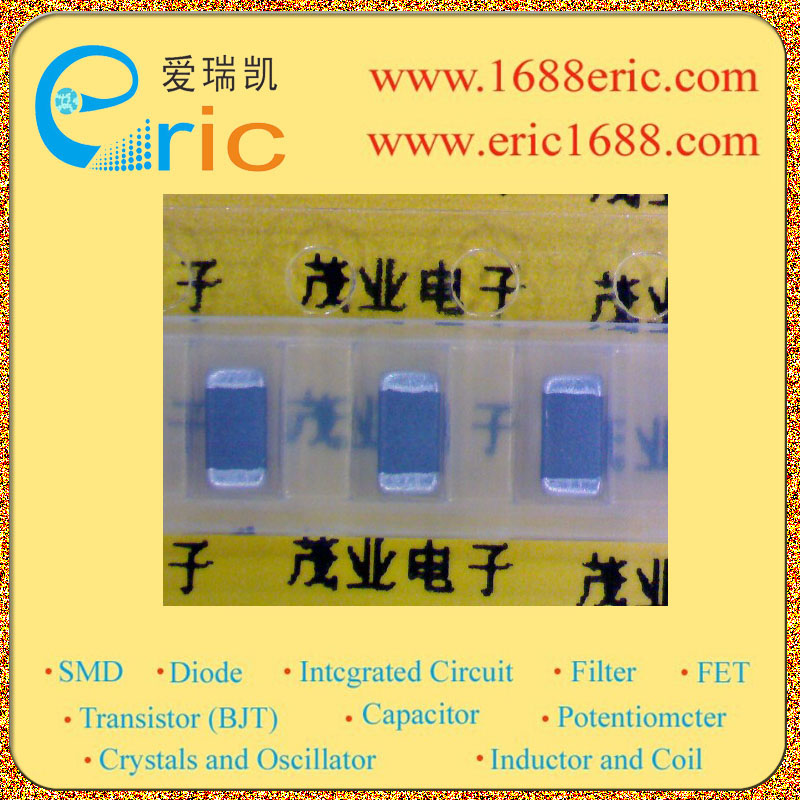

FI-B3216-152K 的参数 |
| 电感值
Inductance |
1.5UH |
| 误差
Tolerance |
±10% |
| 额定电流
Current Rating |
50mA |
| 饱和电流
Current - Saturation |
|
| 不同频率时的Q值
Q @ Frequency |
80 @ 10MHz |
| 自振谐频率SRF
Frequency - Self Resonant |
70MHz |
| DC电阻DCR
DC Resistance (DCR) |
0.3Ω/Ohm |
| 屏蔽
Shielding |
无屏蔽 Unshielded |
| Description & Applications |
CHIP FERRITE INDUCTORS Features 1. Perfect for high density surface mount applications since magnetic shield eliminates crosstalk. 2. Highly reliable in wide temperature and humidity range. Superior Q characteristics in wide frequency. 3. Terminal electrode has excellent solder heat resistance. Applications 1. Prevention of electromagnetic interference to signals on the secondary side of electronic equipment. |
| 描述与应用 |
片式铁氧体电感 特点 1。完美高密度表面安装应用程序，因为磁屏蔽消除了串扰。 2。高度可靠的，在很宽的温度和湿度范围。高级Q特性在很宽的频率。 3。终端电极具有优良的焊接耐热性。 应用 1。防止在次级侧上的信号的电子设备的电磁干扰。 |
