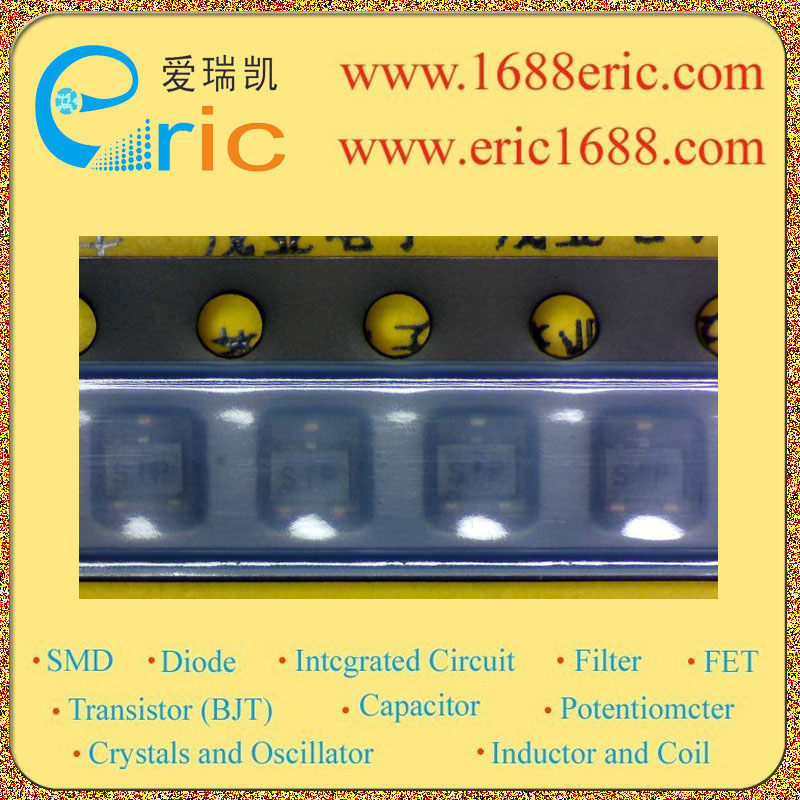

FJX2222ATF S1P 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
75V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
40V |
| 集电极连续输出电流IC
Collector Current(IC) |
600mA/0.6A |
| 截止频率fT
Transtion Frequency(fT) |
300MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
100~300 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
1V |
| 耗散功率Pc
Power Dissipation |
325mW/0.325W |
| Description & Applications |
General Purpose Transistor Collector-Emitter Voltage: VCEO = 40V Collector Dissipation: PC (max) = 325mW |
| 描述与应用 |
通用晶体管 集电极-发射极电压VCEO= 40V 集电极耗散：PC（最大值）=325MW |
