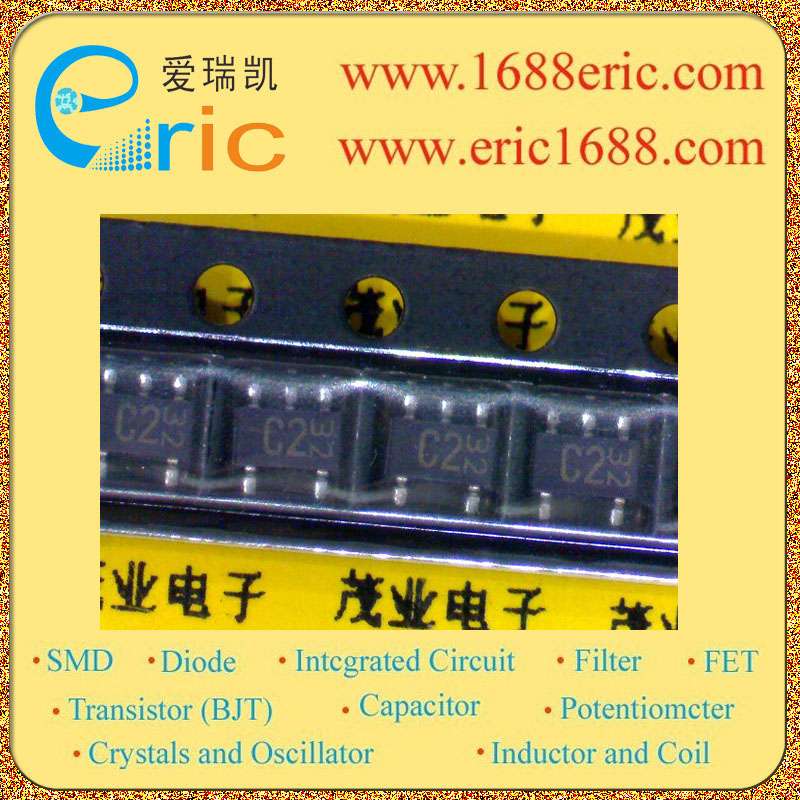

FMC2A C2 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
40V/-10V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
50V/-50V |
| 集电极连续输出电流IC
Collector Current(IC) |
30mA/-30mA |
| Q1基极输入电阻R1
Input Resistance(R1) |
22KΩ/Ohm |
| Q1基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
22KΩ/Ohm |
| Q1电阻比(R1/R2)
Q1 Resistance Ratio |
1 |
| Q2基极输入电阻R1
Input Resistance(R1) |
22KΩ/Ohm |
| Q2基极-发射极输入电阻R2
Base-Emitter Resistance(R2) |
22KΩ/Ohm |
| Q2电阻比(R1/R2)
Q2 Resistance Ratio |
1 |
| 直流电流增益hFE
DC Current Gain(hFE) |
|
| 截止频率fT
Transtion Frequency(fT) |
250MHz |
| 耗散功率Pc
Power Dissipation |
300mW/0.3W |
| Description & Applications |
Features ?Power management(dual digital transistors) ?includes a DTA124E and DTC114E transistor in a EMT or UMT or SMT package. ?Ideal for power switch circuits. ?Mounting cost and area can be cut in half |
| 描述与应用 |
特点 ?电源管理（双数字晶体管） ?包括DTA124E DTC114E在EMT或UMT或SMT封装的晶体管。 ?电源开关电路的理想选择。 ?安装成本和面积可减少一半 |
