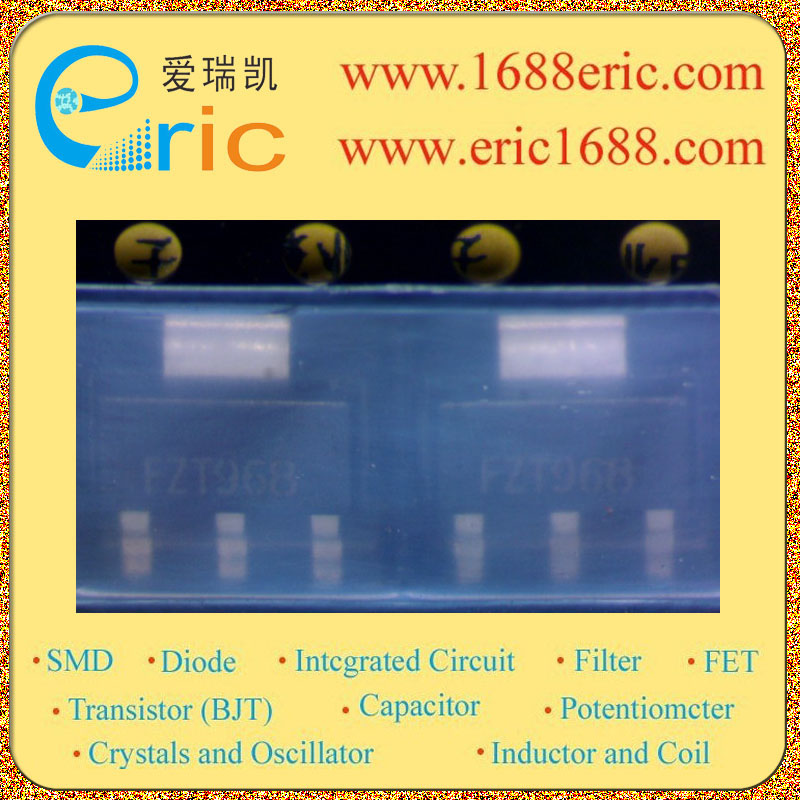

FZT968TA FZT968 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
-15V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
-12V |
| 集电极连续输出电流IC
Collector Current(IC) |
-6A |
| 截止频率fT
Transtion Frequency(fT) |
80MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
300~1000 |
| 管压降VCE（sat）
Collector-Emitter SaturationVoltage |
?450mV/-0.45V |
| 耗散功率Pc
PoWer Dissipation |
3W |
| Description & Applications |
PNP SILICON PLANAR HIGH CURRENT POWER TRANSISTOR FEATURES Extremely low equivalent on-resistance 6 Amps continuous current High gain and very low saturation voltage |
| 描述与应用 |
PNP硅平面高电流电源晶体管 特点 极低的等效导通电阻 6安培连续电流 高增益，非常低的饱和电压 |
