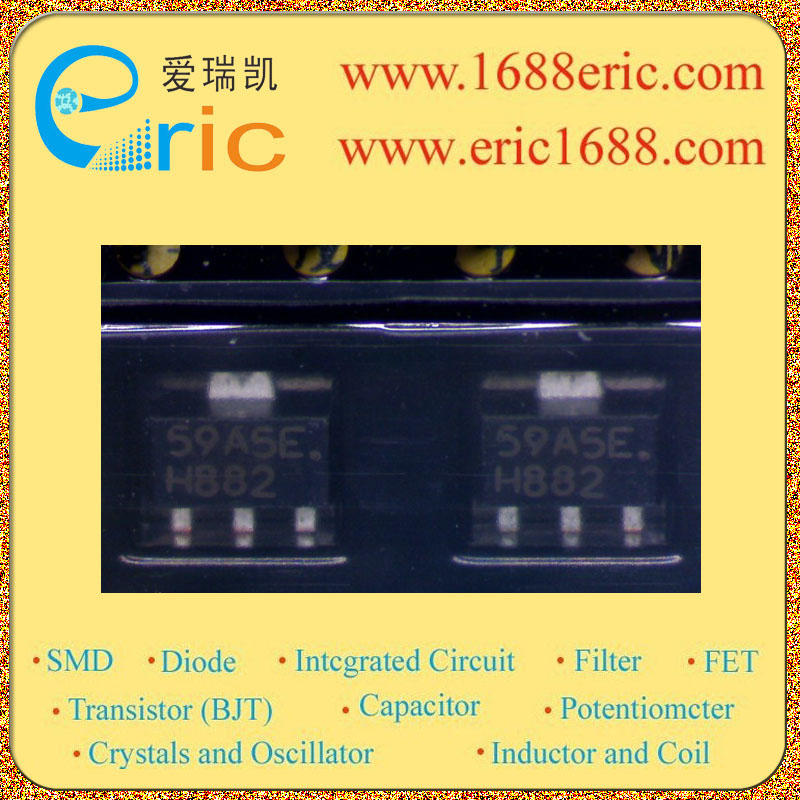

HM882-P H882 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
70V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
30V |
| 集电极连续输出电流IC
Collector Current(IC) |
3A |
| 截止频率fT
Transtion Frequency(fT) |
90MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
160~320 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
500mV/0.5V |
| 耗散功率Pc
Power Dissipation |
600mW/0.6W |
| Description & Applications |
NPN EPITAXIAL PLANAR TRANSISTOR The HM882 is suited for the output stage of 0.75W audio, voltage regulator, and relay drive |
| 描述与应用 |
NPN外延平面晶体管 HM882适合0.75W音频，电压的输出级的稳压器，以及继电器驱动 |
