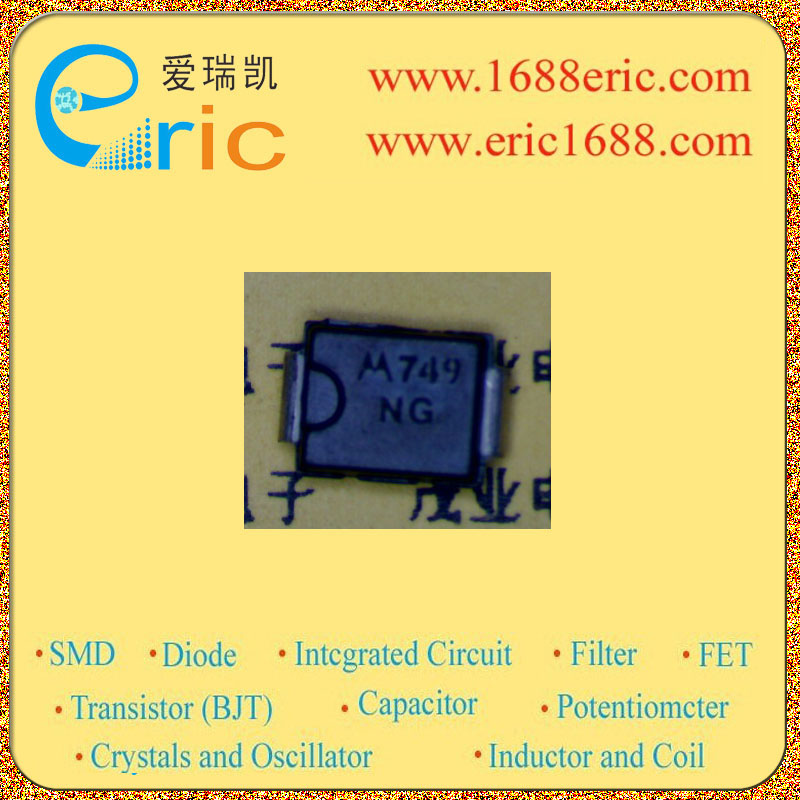

1SMB58AT3 NG 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
58V |
| 反向击穿电压VBR
Breakdown Voltage |
67.8V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
600W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
6.4A |
| 额定耗散功率Pd
Power dissipation |
3W |
| Description & Applications |
600 Watt Peak Power Zener Transient Voltage Suppressors；Features ? Working Peak Reverse Voltage Range ? 5.0 V to 170 V ? Standard Zener Breakdown Voltage Range ? 6.7 V to 199 V ? Peak Power ? 600 W @ 1.0 ms ? ESD Rating of Class 3 (>16 kV) per Human Body Model ? Maximum Clamp Voltage @ Peak Pulse Current ? Low Leakage < 5.0 uA Above 10 V ? UL 497B for Isolated Loop Circuit Protection ? Response Time is Typically < 1.0 ns ? Pb?Free Packages are Available |
| 描述与应用 |
600瓦峰值功率齐纳二极管瞬态电压抑制器;特性 ?工作峰值反向电压范围 - 5.0 V至170 V ?标准齐纳击穿电压范围 - 6.7 V至199 V ?峰值电力 - 600 W@1.0ms ?每人体模型ESD额定值的类3（>16千伏） ?最大钳位电压峰值脉冲电流 ?低漏高于10 V<5.0 UA ?UL497B用于隔离回路的电路保护 ?响应时间通常<1.0ns ?无铅包可用 |
