KV1770ASTL C7 的参数 |
| 反向电压VR
Reverse Voltage |
18V |
| 电容值C
Diode capacitance |
70.00pF |
| @反向电压VR
@Reverse Voltage |
1V |
| 电容值C
Diode capacitance |
13.40pF |
| @反向电压VR
@Reverse Voltage |
4.5V |
| 电容比
Capacitance ratio |
5 |
| Description & Applications |
V series variable capacitance diode for FM tuning Included Twin Element Very Small Tolerance of Element Being Next Device To Each Other Excellent Linearity of The CV Curve Extra Large Capacitance Ratio: A=3.30 to Very Small Series Resistance: RS=to 0.3Ω |
| 描述与应用 |
V系列FM调谐可变电容二极管 包括双元件 相邻设备容量偏差小 出色的CV曲线线性度 超大电容率：A =3.30- 小串联电阻RS=0.3Ω |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

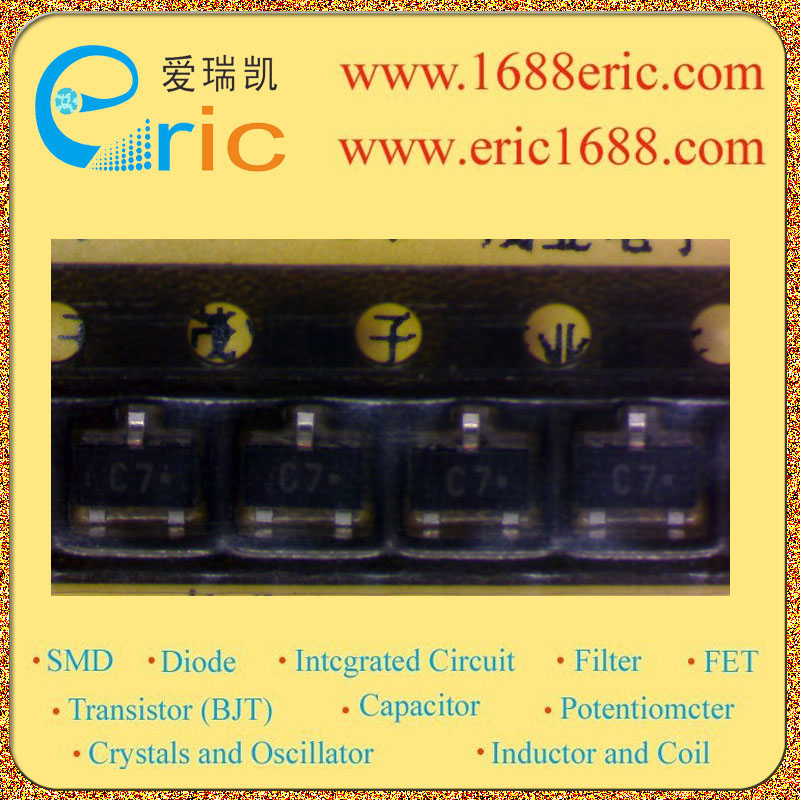

| KV1770ASTL |
C7 |
TOKO |
05+ |
SOT-23/SC-59 |
0 |
二极管Diodes-变容二极管Variable Capacitance Diodes (Varicaps, Varactors)-双管共阴极1 Pair Common Cathode |
查看 |
|
|
|
