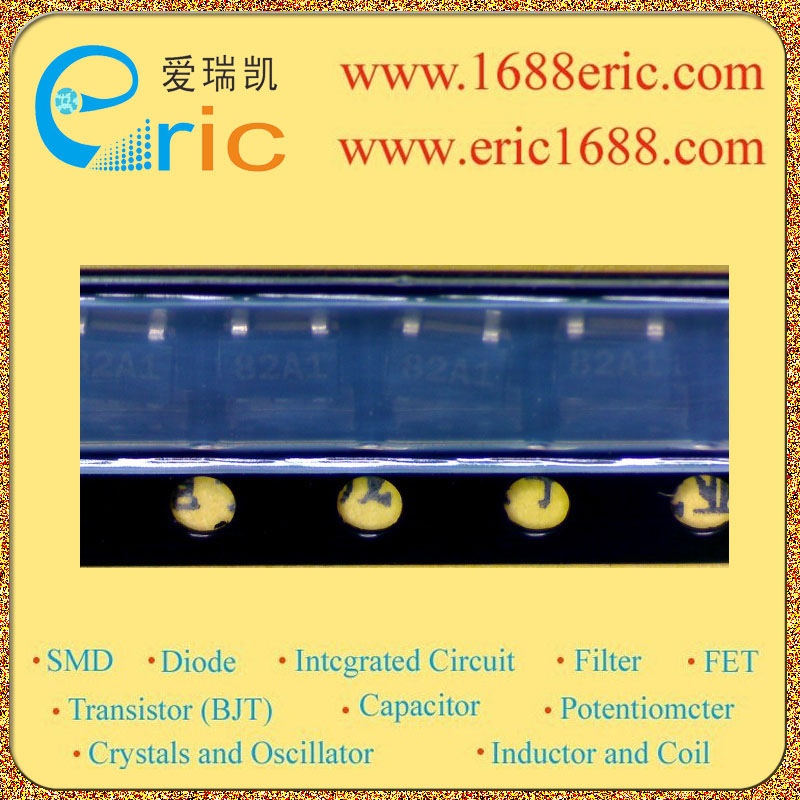

LX8211-00ISE 82A1 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
2.5~6V |
| 输出电压VOUT
Voltage - Output |
可调/adj |
| 输出电流Io
Current - Output |
150mA/0.15A |
| 最大压降VDO
Voltage - Dropout |
250mV/0.25V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
无 No |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
150mA CMOS Low Dropout Regulator ；?Dropout Voltage typically 175mV @ 100mA ?Ultra low shutdown Current typically less than 1uA ?High Output accuracy trimmed to 0.25% ?Standard pinout in SOT-23-5 ?Noise Bypass feature available ?Current and Over Temperature protection ?table with low cost ceramic ?output capacitor ?Battery Operated Systems ?Laptop, Notebook and PDA’s ?Cellular Telephones/pagers ?Hand-Held Instruments ?Linear post regulators for SMPS |
| 描述与应用 |
150MA CMOS低压差稳压器;?漏失电压一般175MV在100mA ?超低电流通常小于1uA的关机 ?高输出精度修剪至0:25％ ?标准接脚SOT-23-5 ?噪声旁路功能 ?电流和过温保护 ?稳定与低成本陶瓷？ ?输出电容器 ?电池供电系统 ?笔记本电脑，笔记本电脑和PDA 蜂窝电话/传呼机？ ?手持式仪器？ ?SMPS的线性后稳压器 |
