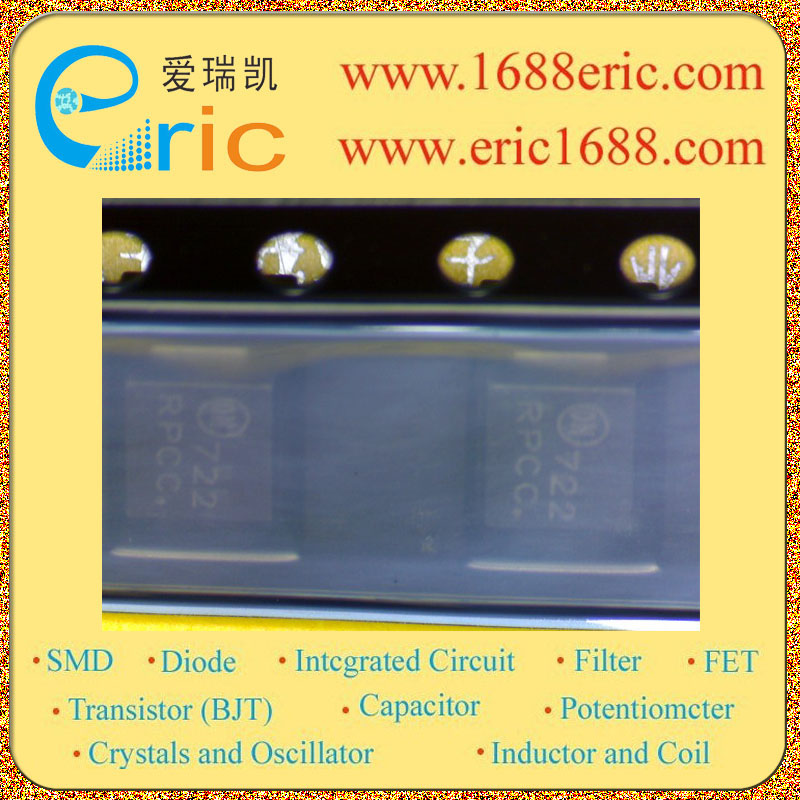

MMT08B064T3G RPCC 的参数 |
| 击穿电压VBO
Breakover voltage |
77V |
| 断态重复峰值电压VDRM
Repetitive peak off-state voltage |
|
| 峰值通态电压VTM
On-state voltage |
3V |
| 峰值脉冲电流(8 x 20us)
Current - Peak Pulse (8 x 20μs) |
250A |
| 峰值脉冲电流(10 x 1000us)
Current - Peak Pulse (10 x 1000μs) |
50A |
| 保持电流IH
Holding current |
150mA |
| Description & Applications |
Thyristor Surge Protectors High Voltage Bidirectional TSPD These Thyristor Surge Protective Devices (TSPD) prevent overvoltage damage to sensitive circuits by lightning, induction and power line crossings. They are breakover?triggered crowbar protectors. Turn?off occurs when the surge current falls below the holding current value. Secondary protection applications for electronic telecom equipment at customer premises. ? High Surge Current Capability: 80 A 10 x 1000 sec, for Controlled Temperature Environments ? The MMT08B064T3 is used to help equipment meet various regulatory requirements including: Bellcore 1089, ITU K.20 & K.21, IEC 950, UL 1459 & 1950 and FCC Part 68. ? Bidirectional Protection in a Single Device ? Little Change of Voltage Limit with Transient Amplitude or Rate ? Freedom from Wearout Mechanisms Present in Non?Semiconductor Devices ? Fail?Safe, Shorts When Overstressed, Preventing Continued Unprotected Operation ? Surface Mount Technology (SMT) ? Indicates UL Recognized ? File #E210057 ? Device Marking: MMT08B064T3: RPCC |
| 描述与应用 |
晶闸管浪涌保护器 高电压双向TSPD 这些晶闸管浪涌保护器件（TSPD）防止 雷击，感应过电压损坏敏感电路 电源线口岸。他们是导通触发撬棍 保护者。关断发生时的浪涌电流低于 保持电流值。 电子电信设备次级保护应用 在客户处所。 ?高浪涌电流能力：80 A 10×1000秒，为控制 温度环境 ?MMT08B064T3是用来帮助设备满足各种 监管规定，包括：贝尔通讯1089，ITU K.20和K.21， IEC950，UL1459及1950年，FCC第68部分。 ?双向保护，在一个单一的设备 ?瞬态电压限制，幅度或速率变化不大 ?免于Wearout机制存在的Non-Semiconductor 设备 ?故障保护，短裤当压力过大，防止续 未受保护的行动 ?表面贴装技术（SMT） ?指示UL认证 - 文件＃E210057 ?器件标识：MMT08B064T3：RPCC |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| MMT08B064T3G |
RPCC |
ON |
07NOPB |
SMB/DO-214AA |
17700 |
可控硅/晶闸管Triac/Thyristor,SCR-浪涌吸收器Thyristor Surge Protection Devices |
查看 |
| MMT08B064T3G |
RPCC |
ON |
07NOPB |
SMB/DO-214AA |
0 |
可控硅/晶闸管Triac/Thyristor,SCR-浪涌吸收器Thyristor Surge Protection Devices |
查看 |
|
|
|
