MMT10B230T3 RPDF 的参数 |
| 极性
Polarization |
双向 Bidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
170V |
| 反向击穿电压VBR
Breakdown Voltage |
265V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
4000W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
100A |
| 额定耗散功率Pd
Power dissipation |
|
| Description & Applications |

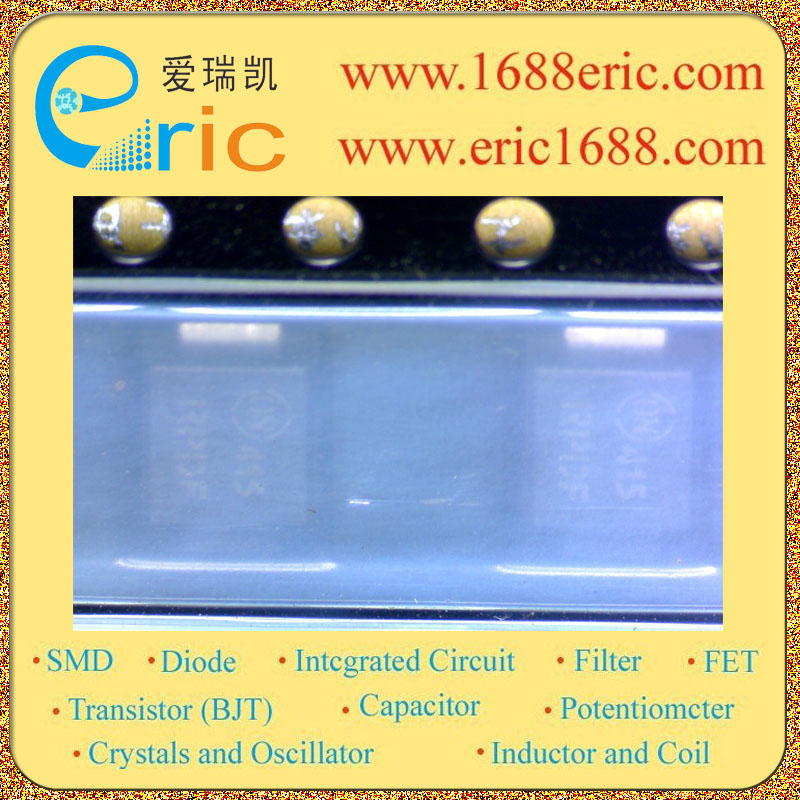

Thyristor Surge Protectors；Specification Features ? Outstanding High Surge Current Capability: 100 Amps 10x1000 μsec Guaranteed at the extended temp range of ?20°C to 65°C ? The MMT10B230T3 Series is used to help equipment meet various regulatory requirements including: Bellcore 1089, ITU K.20 & K.21,IEC 950, UL 1459 & 1950 and FCC Part 68. ? Bidirectional Protection in a Single Device ? Little Change of Voltage Limit with Transient Amplitude or Rate ? Freedom from Wearout Mechanisms Present in on?SemiconductorDevices ? Fail?Safe, Shorts When Overstressed, Preventing Continued Unprotected Operation. ? Surface Mount Technology (SMT) ? Complies with GR1089 Second Level Surge Spec at 500 Amps 2x10 μsec Waveforms ? Indicates UL Registered ? File #E210057 ? Device Marking: MMT10B230T3: RPDF; MMT10B260T3: RPDG;MMT10B310T3: RPDJ, and Date Code |
| 描述与应用 |
晶闸管浪涌保护器;规格特性 ?杰出的高浪涌电流能力：100安培10x1000微秒保证在扩展温度范围-20°C至65°C ?该MMT10B230T3系列是用来帮助设备满足各种监管要求包括：贝尔通讯1089，ITU K.20和K.21，IEC950，UL 1459及1950和FCC第68部分 ?双向保护在一个单一设备 ?瞬态电压限制，幅度或速率变化不大 ?免于Wearout机制目前在SemiconductorDevices ?故障保护，短裤当压力过大，防止续 未受保护的行动 ?表面贴装技术（SMT） ?符合GR1089二级电涌规格500安培2×10微秒波形 ?指示UL注册 - 文件＃E210057 ?器件标识：MMT10B230T3：RPDF MMT10B260T3：RPDG MMT10B310T3：RPDJ，日期代码 |
