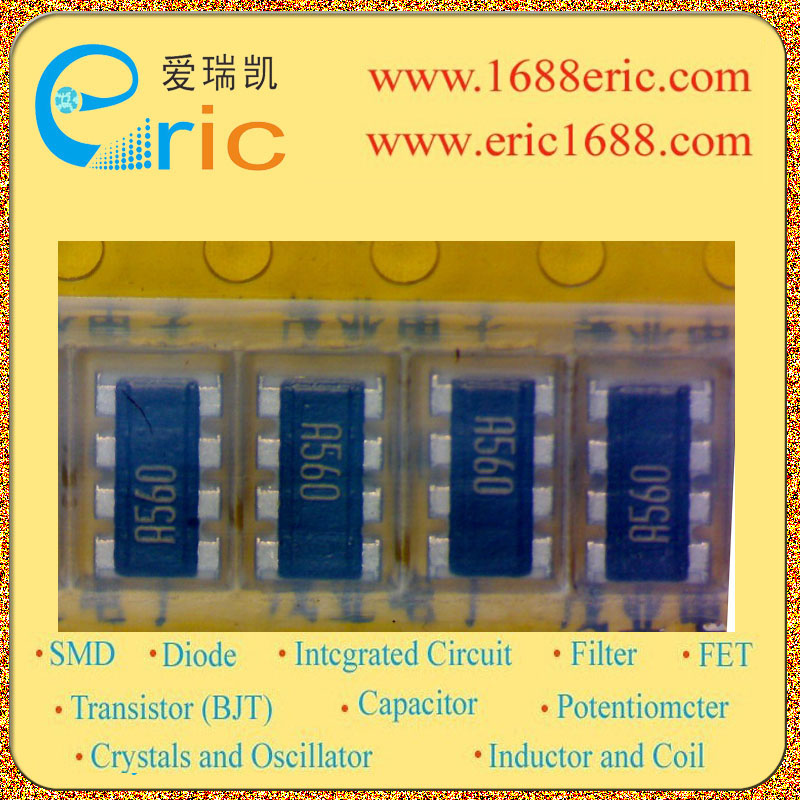

MNR34J5ABJ560 R560 的参数 |
| 电阻值
Resistance |
56Ω/Ohm |
| 误差
Tolerance |
±5% |
| 电阻器数
Number of Resistors |
4 |
| 引脚数
Number of Pins |
8 |
| 功耗
Power Dissipation
|
125mW |
| Description & Applications |
Chip resistor networks MNR34 (3216×4 size) Features 1) Convex electrodes Easy to check the fillet after soldering is finished. 2) Compatible with a wide range of mounting equipment. Squared corners make it excellent for mounting using image recognition devices. 3) High-density mounting Can be mounted even more densely than four 3216 chips (MCR18). Also, the number of parts and cost of mounting have been reduced. 4) ROHM resistors have approved ISO-9001 certification. |
| 描述与应用 |
片式电阻网络 MNR34（3216×4大小） 特点 1）凸电极 易焊接完成后，检查圆角。 2）具有广泛的安装设备兼容。 方角使优秀的安装使用图像识别装置。 3）高密度安装可比四3216芯片（MCR18）安装得更密集。此外，部件的数量和安装成本也降低了。 4）ROHM电阻已通过ISO-9001认证。 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |
| MNR34J5ABJ111 |
R110 |
ROHM |
03+ |
4(1206)-110R |
3900 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR34J5ABJ123 |
R123 |
ROHM |
03+ |
4(1206)-12K |
4000 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR34J5ABJ202 |
R202 |
ROHM |
03+ |
4(1206)-2K |
4000 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR34J5ABJ471 |
R471 |
ROHM |
03+ |
4(1206)-470R |
6886 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR34J5ABJ510 |
R510 |
ROHM |
03+ |
4(1206)-51R |
4000 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR34J5ABJ560 |
R560 |
ROHM |
03+ |
4(1206)-56R |
2985 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR34J5ABJ563 |
R563 |
ROHM |
03+ |
4（1206）-56K |
4000 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR34J5ABJ823 |
R823 |
ROHM |
03+ |
4(1206)-82K |
4000 |
电阻Resistor-排阻Resistor Network/Array |
查看 |
| MNR34J5ABJ123 |
a123 |
ROHM |
97+ |
4(1206)-12K |
0 |
电阻Resistor |
查看 |
|
|
|
