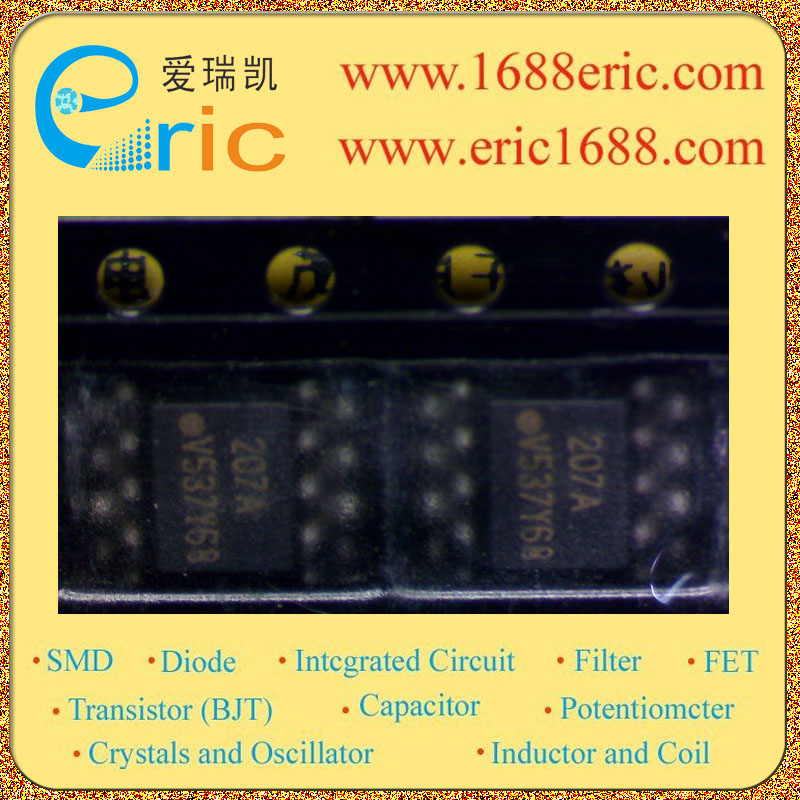

MOC207R1VM 207A 的参数 |
| 通道数
Number of Channels |
1 |
| 输入类型
Input Type |
DC |
| 电压 - 隔离
Voltage - Isolation |
3000Vrms |
| 电流传输比（最小值）
Current Transfer Ratio (Min) |
100% @ 10mA |
| 电流传输比（最大值）
Current Transfer Ratio (Max) |
200% @ 10mA |
| 电压 - 输出
Voltage - Output |
70V |
| 电流 - 输出/通道
Current - Output / Channel |
150mA |
| 电流 - DC 正向 (If)
Current - DC Forward (If) |
60mA |
| Vce 饱和值（最大值）
Vce Saturation (Max) |
0.4V |
| 输出类型
Output Type |
有基极的晶体管 Transistor with Base |
| Description & Applications |
Features ? SMALL OUTLINE OPTOISOLATORS TRANSISTOR OUTPUT ? Convenient Plastic SOIC–8 Surface Mountable Package Style ? Closely Matched Current Transfer Ratios ? Minimum V(BR)CEO of 70 Volts Guaranteed ? Standard SOIC–8 Footprint, with 0.050″ Lead Spacing ? Shipped in Tape and Reel, which Conforms to EIA Standard RS481A ? Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering ? High Input–Output Isolation of 3000 Vac (rms) Guaranteed ? UL Recognized File #E54915 APPLICATIONS ? Feedback Control Circuits ? Interfacing and coupling systems of different potentials and impedances ? General Purpose Switching Circuits ? Monitor and Detection Circuits |
| 描述与应用 |
特点 ?小外形晶体管输出光隔离器 ?方便的塑料SOIC-8表面贴装封装形式 ?紧密匹配的电流传输比 ?最低V（BR）CEO，70伏特，保证 ?标准SOIC-8足迹与0.050“引线间距 ?发货编带和卷轴，符合EIA标准RS481A ?兼容双波峰焊，气相和IR回流焊 ?高输入输出隔离3000 VAC（有效值）保证 ?UL识别的文件＃E54915 应用 ?反馈控制电路 ?接口和不同的潜能和阻抗耦合系统 ?通用开关电路 ?监控和检测电路 |
