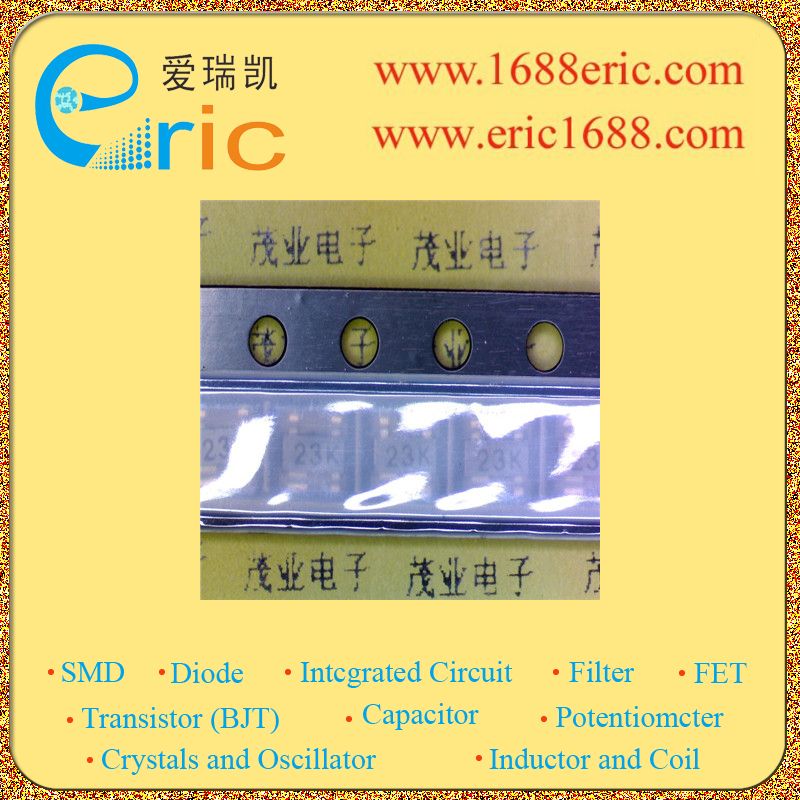

型号： |
MRF9811T1 |
| 标记/丝印/代码/打字： |
23K |
| 厂家： |
MOTOROLA |
| 封装： |
SOT-143 |
| 批号： |
05+ |
| 库存数量： |
3000 |
| 所属分类： |
场效应管FET
MESFET-N沟道MESFET N-Channel |
| 技术文档PDF： |
在线阅读  |
| |
|
| 在线购买 |
|
|
|
|
MRF9811T1 23K 的参数 |
| 最大源漏极电压Vds
Drain-Source Voltage |
15V |
| 栅源极击穿电压V(BR)GS
Gate-Source Voltage |
-5V |
| 漏极电流(Vgs=0V)IDSS
Drain Current |
350mA |
| 关断电压Vgs(off)
Gate-Source Cut-off Voltage |
|
| 耗散功率Pd
Power Dissipation |
770mW/0.77W |
| Description & Applications |
The RF Small Signal Line N–Channel Depletion–Mode MESFET Description Designed for use in driver stages of moderate power RF amplifiers to 2 GHz. Typical applications are cellular radios and personal communication .transmitters such as AMPS, ETACS, NMT, GSM, PCN, JDC and DECT Feature Performance Specifications at 900 MHz, 5.8 V Output Power = 21 dBm Power Gain = 14 dB Drain Efficiency = 55% Plastic Surface Mount Package Order MRF9811T1 for Tape and Reel Packaging |
| 描述与应用 |
RF小信号线 N沟道耗尽型MESFET 描述 专为中等功率RF放大器至2 GHz的驱动级使用。典型的应用是蜂窝无线电发射器如AMPS，ETACS，NMT，GSM，PCN，JDC和DECT和个人通信。 特点 性能规格在900 MHz，5.8 V时 输出功率= 21 dBm 功率增益= 14dB 漏极效率=55％ 塑料表面贴装封装 |
| 技术文档PDF下载 |
在线阅读 |
|
|
|
|
|
