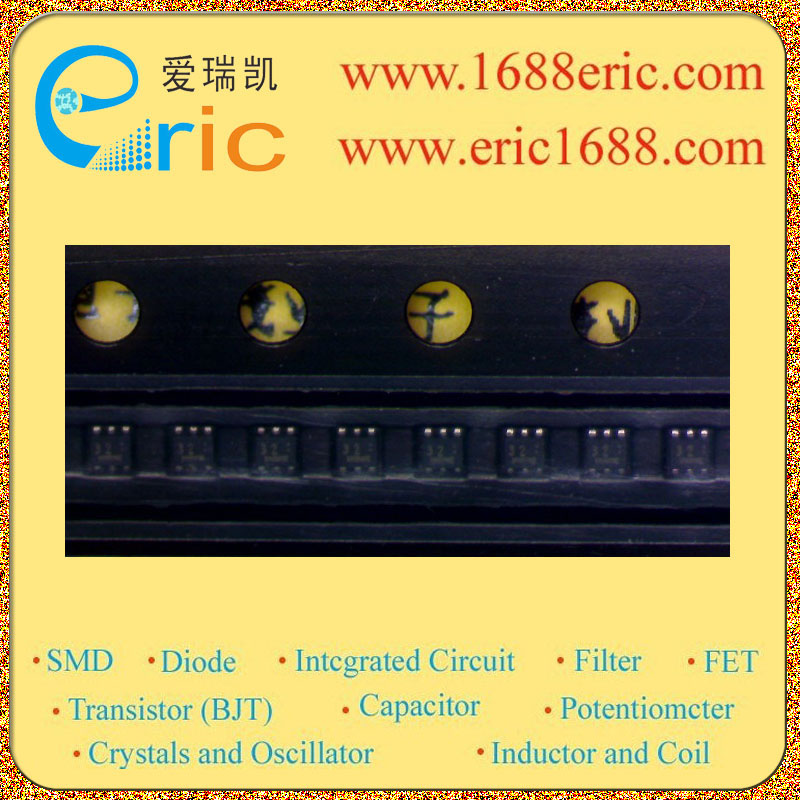

MT6L05FS
 型号:  MT6L05FS
 标记/丝印/代码/打字:  32
 厂家:  TOSHIBA
 封装:  SOT-563/ES6
 批号:  05+
 库存数量:  1600
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  复合三极管Complex Bipolar Transistor
    NPN+NPN
 技术文档PDF:  在线阅读

 在线购买

MT6L05FS 32 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 10V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 5V
集电极连续输出电流IC Collector Current(IC) 40mA
截止频率fT Transtion Frequency(fT) 4500MHz
直流电流增益hFE DC Current Gain(hFE) 80~140
管压降VCE(sat) Collector-Emitter Saturation Voltage
耗散功率Pc Power Dissipation 100mW
Description & Applications Features ? TOSHIBA Transistor Silicon NPN Epitaxial Planar Type ? Two devices are incorporated in a fine-pitch, small-mold package (6 pins): fS6. ? Superior noise characteristics ? Superior performance in buffer and oscillator applications. ? VHF~UHF Band Low-Noise Amplifier Applications
描述与应用 特点 ?东芝晶体管NPN硅外延平面型 ?两个设备都成立于细间距,小型模具包(6针):FS6。 ?高级噪声特性 ?缓冲和振荡器的应用中的卓越性能。 ?VHF?UHF频段低噪声放大器应用
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
MT6L05FS 32 TOSHIBA 05+ SOT-563/ES6 1600 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L11FS YO TOSHIBA 05+ SOT-563/ES6 750 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L58AE AX TOSHIBA 04+ SOT-563/ES6 0 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L58AFS 15 TOSHIBA 05+ SOT-563/ES6 2000 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L62AE TF TOSHIBA 05+NOPB SOT-563/ES6 7000 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L71FS 14 TOSHIBA 05+ SOT-563/ES6 1600 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L74FS 51 TOSHIBA 05+ SOT-563/ES6 900 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L73CT 50 TOSHIBA 05+ SOD-723/CST6 3000 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L75CT 52 TOSHIBA 05+ CST3 2200 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L58AE AX TOSHIBA 04+ SOT-563/ES6 0 三极管Bipolar Junction Transistors(BJT)-复合三极管Complex Bipolar Transistor-NPN+NPN 查看
MT6L55E AR TOSHIBA 03+ SOT-563/ES6 4000 三极管Bipolar Junction Transistors(BJT) 查看
