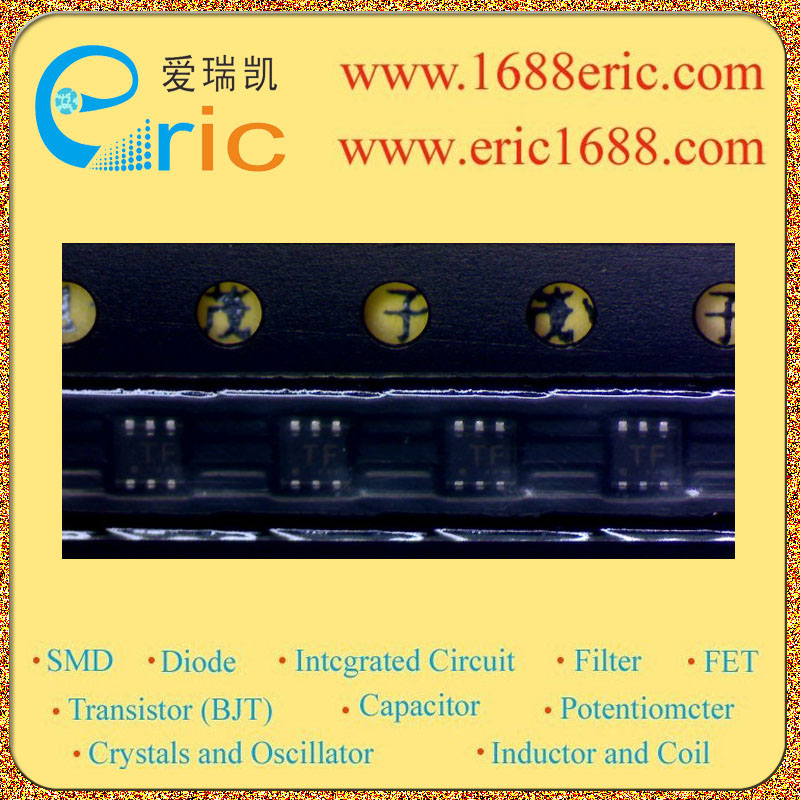

MT6L62AE TF 的参数 |
| 集电极-基极反向击穿电压V(BR)CBO
Collector-Base Voltage(VCBO) |
10V |
| 集电极-发射极反向击穿电压V(BR)CEO
Collector-Emitter Voltage(VCEO) |
5V |
| 集电极连续输出电流IC
Collector Current(IC) |
25mA/40mA |
| 截止频率fT
Transtion Frequency(fT) |
12000MHz/10000MHz |
| 直流电流增益hFE
DC Current Gain(hFE) |
70~140/80~160 |
| 管压降VCE（sat）
Collector-Emitter Saturation Voltage |
|
| 耗散功率Pc
Power Dissipation |
100mW |
| Description & Applications |
Features ? TOSHIBA Transistor Silicon NPN Epitaxial Planar Type ? VHF-UHF Band Low Noise Amplifier Application ? VHF-UHF Band Oscillator Application |
| 描述与应用 |
特点 ?东芝晶体管NPN硅外延平面型 ?VHF-UHF波段低噪声放大器的应用 ?VHF-UHF频带振荡器的应用 |
