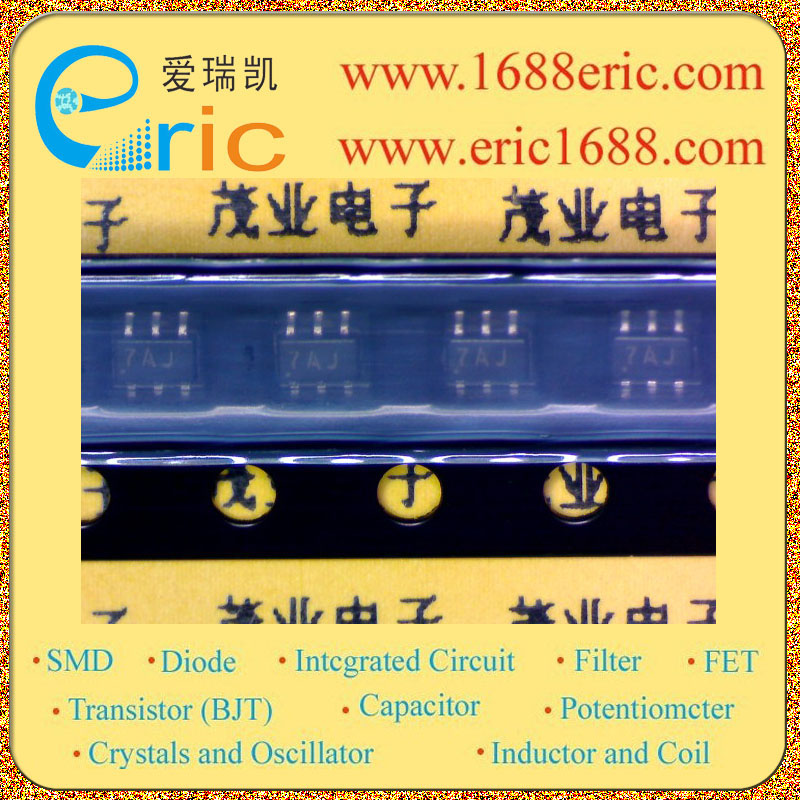

MUN5211DW1T1
 型号:  MUN5211DW1T1
 标记/丝印/代码/打字:  7A
 厂家:  ON
 封装:  SOT-363/SC-88/SC70-6
 批号:  05+
 库存数量:  0
 所属分类:  三极管Bipolar Junction Transistors(BJT)
  复合带阻尼三极管Complex Bipolar Digital Transistor
    NPN+NPN
 技术文档PDF:  在线阅读

 在线购买

MUN5211DW1T1 7A 的参数

集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) 50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) 50V
集电极连续输出电流IC Collector Current(IC) 100mA
Q1基极输入电阻R1 Input Resistance(R1) 10KΩ/Ohm
Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 10KΩ/Ohm
Q1电阻比(R1/R2) Q1 Resistance Ratio 1
Q2基极输入电阻R1 Input Resistance(R1) 10KΩ/Ohm
Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) 10KΩ/Ohm
Q2电阻比(R1/R2) Q2 Resistance Ratio 1
直流电流增益hFE DC Current Gain(hFE) 60
截止频率fT Transtion Frequency(fT)
耗散功率Pc Power Dissipation 310mW/0.31W
Description & Applications Features ?Dual Bias Resistor Transistors ?NPN Silicon Surface Mount Transistors with Monolithic Bias Resistor Network ?Simplifies Circuit Design ?Reduces Board Space ?Reduces Component Count ?The SC?70/SOT?323 package can be soldered using wave or reflow.The modified gull?winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die. ?Available in 8 mm embossed tape and reel. Use the Device Number to order the 7 inch/3000 unit reel. ?Pb?Free Packages are Available
描述与应用 特点 ?双偏置电阻晶体管 ?NPN硅表面贴装晶体管与单片偏置电阻网络 ?简化电路设计 ?缩小板级空间 ?减少了元件数量SC-70/SOT-323包装可以使用波或回流焊接。修改后的鸥翅引线过程中吸收热应力除焊接的模具损坏的可能性。 ?可在8 mm压纹带和卷轴。使用设备号到责令7 inch/3000的单位卷轴。 ?无铅包可用
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
MUN5211DW1T1 7A ON 05+ SOT-363/SC-88/SC70-6 0 三极管Bipolar Junction Transistors(BJT)-复合带阻尼三极管Complex Bipolar Digital Transistor-NPN+NPN 查看
MUN5211T1 8A ON 05+ SOT-323/SC-70 0 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MUN5211T1 8A ON 05+NOPB2500 SOT-323/SC-70 5050 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
MUN5211T1 8A LRC 05+ SOT-323/SC-70 0 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
SMUN5211T3 8A ON 05+ SOT-323/SC-70 7000 三极管Bipolar Junction Transistors(BJT)-带阻尼NPNNPN Bipolar Digital Transistor (BRT) 查看
