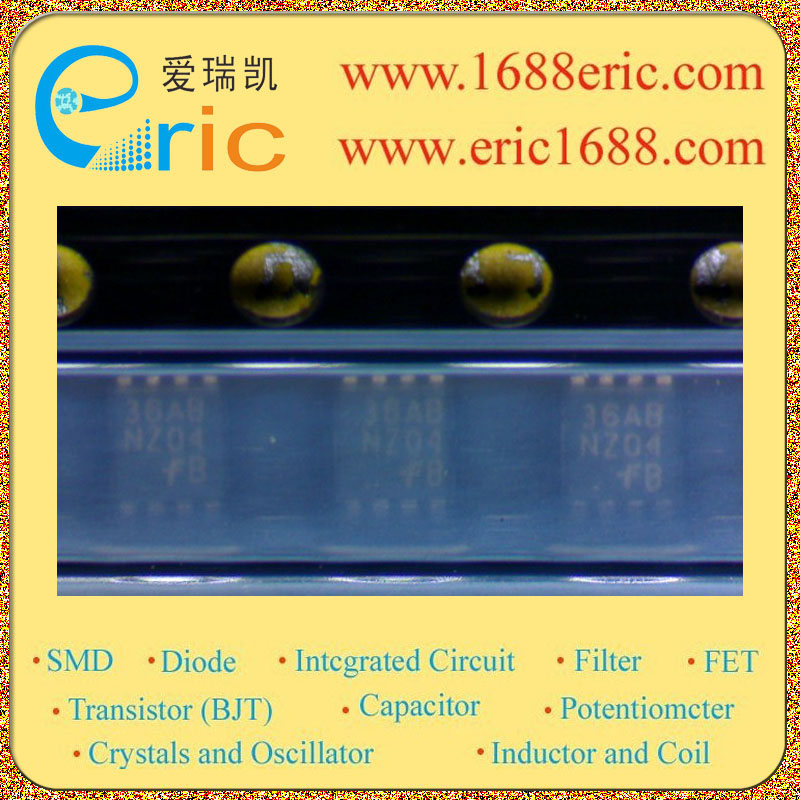

NC7NZ04K8X NZ04 的参数 |
| 逻辑类型
Logic Type |
反相器 Inverter |
| 电路数
Number of Circuits |
3 |
| 输入数
Number of Inputs |
1 |
| 电源电压Vcc
Voltage - Supply |
1.65V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-32mA，32mA |
| 低逻辑电平
Logic Level - Low |
0.1V~0.55V |
| 高逻辑电平
Logic Level - High |
1.55V~3.8V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
2.4ns @ 4.5V~5.5V，50pF |
| Description & Applications |
TinyLogic UHS Inverter ；Features Space saving US8 surface mount package MicroPak? leadless package Ultra High Speed; tPD 2.4 ns typ into 50 pF @5V VCC High Output Drive; ±24 mA @3V VCC Broad VCC Operating Range: 1.65V to 5.5V Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented |
| 描述与应用 |
TinyLogic UHS变频器;特性 US8表面贴装封装节省空间 采用MicroPak?无铅封装 超高速TPD2.4 ns（典型值）为50 pF的@ 5V VCC 高输出驱动器，±24毫安@ 3V VCC 宽广的VCC工作电压范围：1.65V到5.5V 掉电高阻抗输入/输出 过压容限输入方便5V3V转换 专利的噪声/ EMI抑制电路实施 |
