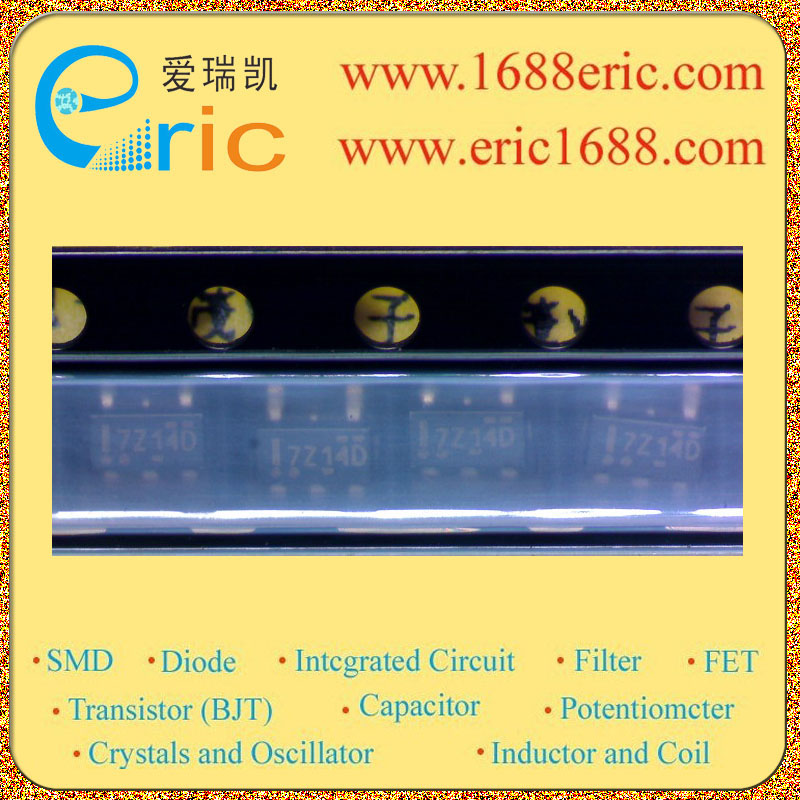

NC7SZ14M5X 7Z14 的参数 |
| 逻辑类型
Logic Type |
反相施密特触发器 Inverting Schmitt trigger |
| 电路数
Number of Circuits |
1 |
| 输入数
Number of Inputs |
1 |
| 电源电压Vcc
Voltage - Supply |
1.65V~5.5V |
| 静态电流Iq
Current - Quiescent (Max) |
1uA |
| 输出高，低电平电流
Current - Output High, Low |
-32mA，32mA |
| 低逻辑电平
Logic Level - Low |
0.2V~1.2V |
| 高逻辑电平
Logic Level - High |
1.4V~3.6V |
| 传播延迟时间@Vcc，CL
Max Propagation Delay @ V, Max CL |
5.9ns @ 5V，50pF |
| Description & Applications |
Features TinyLogic?UHS Inverter with Schmitt Trigger Input Ultra-High Speed: tPD 3.7ns (Typical) into 50pF at 5V VCC High Output Drive: ±24mA at 3V VCC Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX when Operated at 3.3V VCC Power Down High Impedance Inputs/Outputs Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small MicroPak? Packages Space-Saving SOT23 and SC70 Packages |
| 描述与应用 |
特性 TinyLogic?UHS反相器具有施密特触发器输入 超高速的TPD3.7ns（典型值）到50PF在5V VCC 高输出驱动器的±24mA电流在3V VCC 宽广的VCC工作电压范围：1.65V到5.5V 操作时，匹配性能LCX在3.3V VCC 掉电高阻抗输入/输出 过电压耐受输入方便5V到3V 翻译 专有的噪声/ EMI抑制电路 超小型的MicroPak?软件包 节省空间的SOT23和SC70封装 |
