NCP100SN RAB 的参数 |
| 参考类型
Reference Type |
旁路，可调节，精度 Shunt, Adjustable, Precision |
| 输出电压Vo
Voltage - Output |
0.9V~6V |
| 误差
Tolerance |
±2.6% |
| 温度系数
Temperature Coefficient |
|
| 输入电压
Voltage - Input |
0.9V~6V |
| 阴极电流
Current - Cathode |
100μA |
| 输出电流IOUT
Current - Output |
20mA |
| Description & Applications |
FEATURES ? Sub 1.0 V Precision Adjustable Shunt Regulator ? Programmable Output Voltage Range of 0.9 V to 6.0 V ? Voltage Reference Tolerance of ±1.7% ? Sharp Low Current Turn–ON Characteristic ? Low Dynamic Output Impedance of 0.2 from 100 A to 20 mA ? Wide Operating Current Range of 80 A to 20 mA ? Space Saving TSOP–5 Package Applications ? Reference for Single Cell Alkaline, NiCD and NiMH Applications ? Low Output Voltage (2.3 V) Switching Power Supply Error Amp ? Battery Powered Consumer Products ? Portable Test Equipment and Instrumentation |
| 描述与应用 |
特点 ?子1.0 V精密可调并联稳压器 ?可编程输出电压范围为0.9 V到6.0 V ?参考电压公差为±1.7％ ?夏普低电流导通特性 ?低动态输出阻抗为0.2 从100A至20 mA ?宽工作电流范围为80？至20 mA ?节省空间TSOP-5封装 应用 ?参考单节碱性电池，镍镉电池和镍氢电池应用 ?低输出电压（2.3 V）开关电源误差放大器 ?电池供电消费者产品 ?便携式测试设备和仪器 |
| 技术文档PDF下载 |
在线阅读  |
|
|
|
|
|
相关型号列表 |
| 型号 |
标记/丝印/代码 |
厂家 |
批号 |
封装 |
数量 |
描述 |
详细资料 |

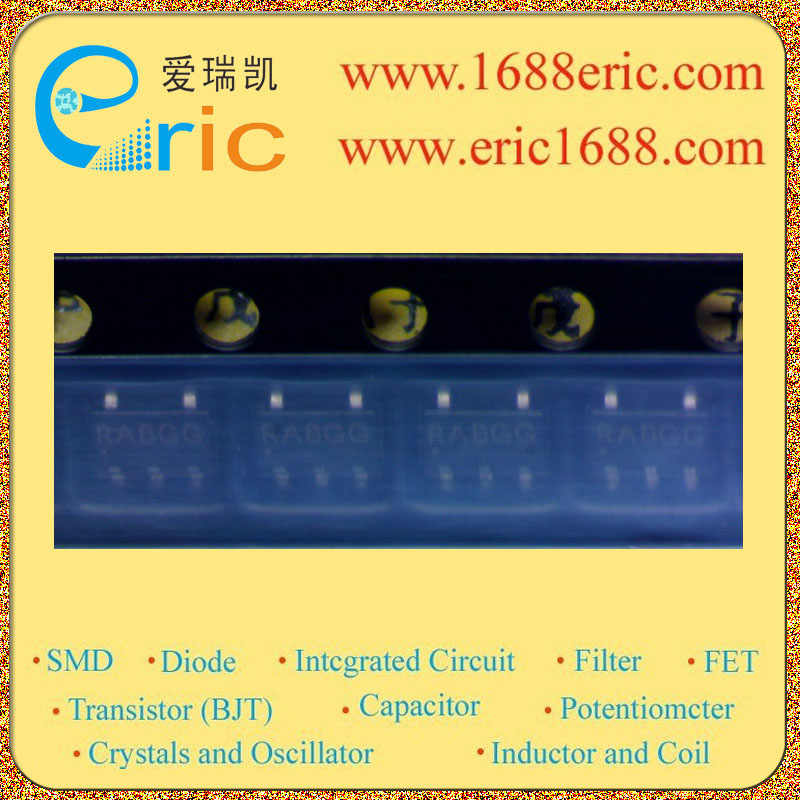

| NCP100SN |
RAB |
ON |
05+ |
SOT-153/TSOP-5/SOT23-5 |
50 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
| NCP100SN |
RAB |
ON |
05 |
SOT-153/TSOP-5/SOT23-5 |
0 |
电源管理ICPower Management IC/PMIC-电压基准Voltage Reference |
查看 |
|
|
|
