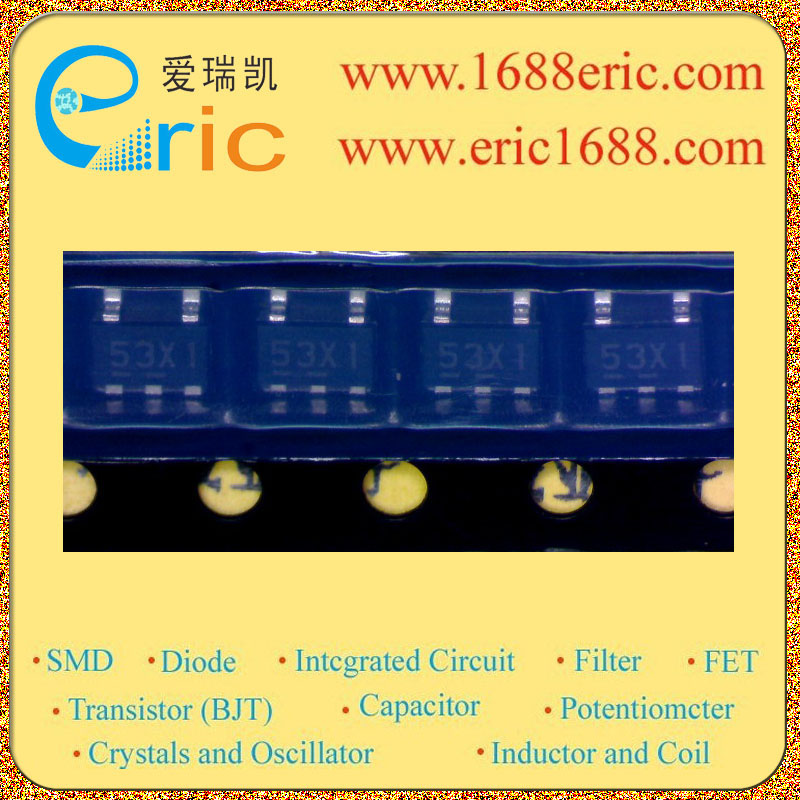

NJM2870F25 53 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
14V |
| 输出电压VOUT
Voltage - Output |
2.5V |
| 输出电流Io
Current - Output |
60mA |
| 最大压降VDO
Voltage - Dropout |
120mV/0.12V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
有 Yes |
| 最大耗散功率Pd
Power dissipation |
|
| Description & Applications |
LOW DROPOUT VOLTAGE REGULATOR ；?High Ripple Rejection 56dB ≤ RR (DC < f < 60kHz) 66dB typ. (f=100Hz) 60dB typ. (f=1kHz) ?Output Noise Voltage Vno=30μV typ.(Cp=0.01μF) ?Output Current Io(max.)=150mA ?High Precision Output Vo±2% ?Low Dropout Voltage ?VI -O=0.12V typ. (Io=60mA, Vo≥1.8V) ?Input Voltage range +2～+14V (Vo=1.5V Version) ?ON/OFF Control (Active High) ?Output capacitor with 4.7uF ceramic capacitor ?Internal Short Circuit Current Limit ?Internal Thermal Overload Protection ?Bipolar Technology |
| 描述与应用 |
低压差稳压器;?高纹波抑制56分贝≤RR（DC
|
