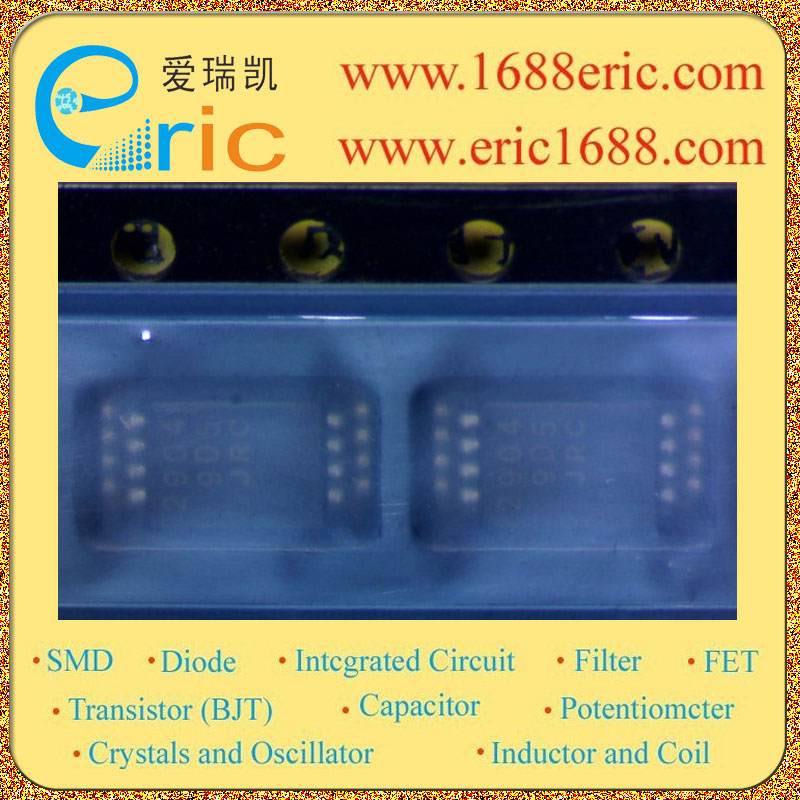

NJM2904V 2904 的参数 |
| 电路数
Number of Circuits |
2 |
| 转换速率
Slew Rate |
0.5V/μs |
| 增益带宽积
Gain Bandwidth Product |
0.6MHz |
| 共模抑制比
Common Mode Rejection Ratio |
85dB |
| -3db 带宽
-3db Bandwidth |
|
| 输入偏置电流
Current - Input Bias |
25nA |
| 输入失调电压
Voltage - Input Offset |
2mV |
| 电源电流
Current - Supply |
0.7mA |
| 电流 - 输出/通道
Current - Output / Channel |
30mA |
| 电压 - 电源，单/双 (±)
Voltage - Supply, Single/Dual (±) |
3V ~ 32V,±1.5V ~ ±16V |
| Description & Applications |
high gain, internally frequency compensated operation amplifiers, Application areas include transducer amplifiers, DC gain blocks, and all the conventional op amp circuits, which now can be more easily implemented in single power supply systems. SINGLE-SUPPLY DUAL OPERATIONAL AMPLIFIER |
| 描述与应用 |
高增益、内部频率补偿操作放大器, 应用领域包括传感器放大器,直流增益 块,所有的传统运算放大器电路,它现在可以更容易地在单电源系统实现。单电源双运算放大器 |
