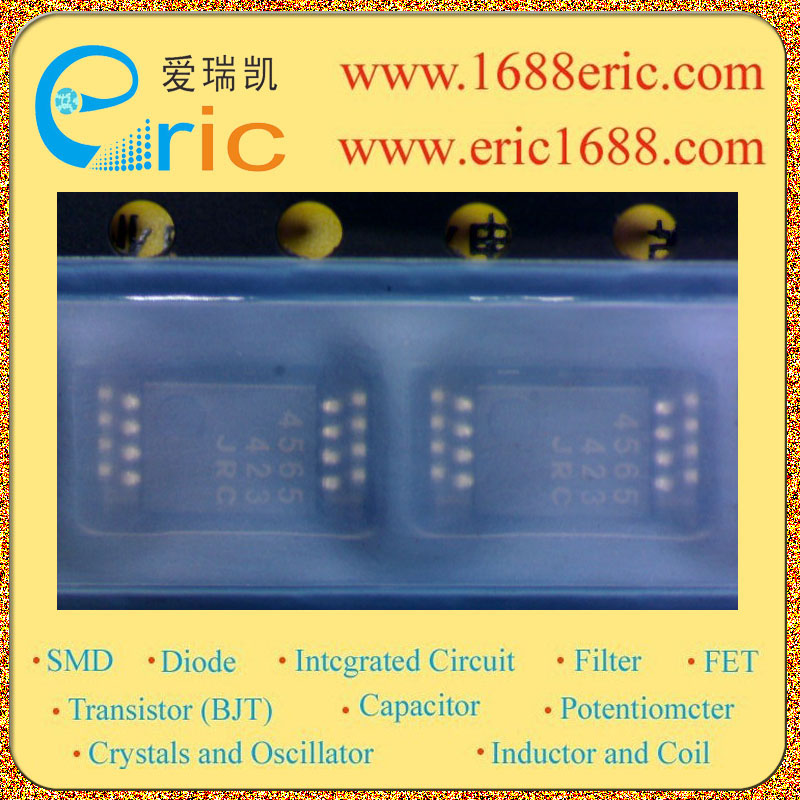

NJM4565V 4565 的参数 |
| 电路数
Number of Circuits |
2 |
| 转换速率
Slew Rate |
4V/μs |
| 增益带宽积
Gain Bandwidth Product |
10MHz |
| 共模抑制比
Common Mode Rejection Ratio |
90dB |
| -3db 带宽
-3db Bandwidth |
|
| 输入偏置电流
Current - Input Bias |
50nA |
| 输入失调电压
Voltage - Input Offset |
0.5mV |
| 电源电流
Current - Supply |
4.5mA |
| 电流 - 输出/通道
Current - Output / Channel |
mA |
| 电压 - 电源，单/双 (±)
Voltage - Supply, Single/Dual (±) |
±4V~±18V |
| Description & Applications |
high-gain, wide-bandwidth, dual low noise operational amplifier DUAL OPERATIONAL AMPLIFIER |
| 描述与应用 |
高增益、宽带宽、双低噪声运算放大器 双运算放大器 |
