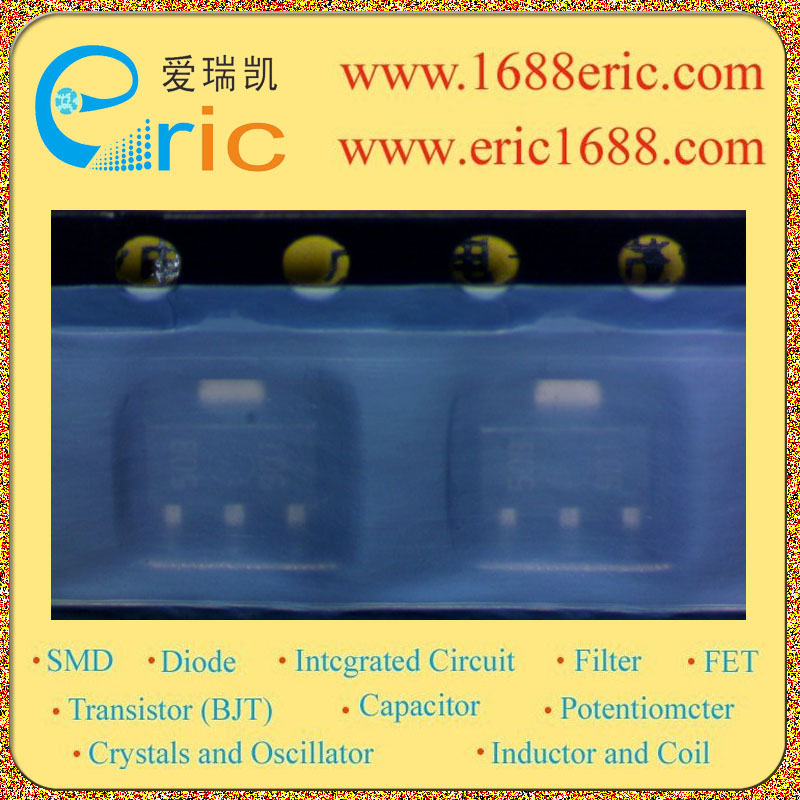

NJU7202U50 50B 的参数 |
| 电路数量
Number of Regulators |
1 |
| 输入电压VIN
Voltage - Input |
15V |
| 输出电压VOUT
Voltage - Output |
5V |
| 输出电流Io
Current - Output |
50mA |
| 最大压降VDO
Voltage - Dropout |
400mV/0.4V |
| 带使能脚EN/CE(ON/OFF功能)
With Enable Pin |
无 No |
| 最大耗散功率Pd
Power dissipation |
300mW/0.3W |
| Description & Applications |
HIGH OUTPUT CURRENT C-MOS 3-TERMINAL VOLTAGE REGULATOR ;?High Output Current IO = 100mA ? Low Operating Current 20μA typ ? Low Dropout Voltage ?VIO < 0.6V @IO = 100mA ? Wide Operating Voltage Range ? Small Temperature Coefficient of Output Voltage ? Short Current Protection Circuit |
| 描述与应用 |
高输出电流的C-MOS3端稳压;?高输出电流IO=100MA ?低工作电流20μA（典型值） ?低的漏失电压ΔVIO<0.6V@ IO=100毫安 ?宽工作电压范围 输出电压的温度系数小 ?短路保护电路 |
