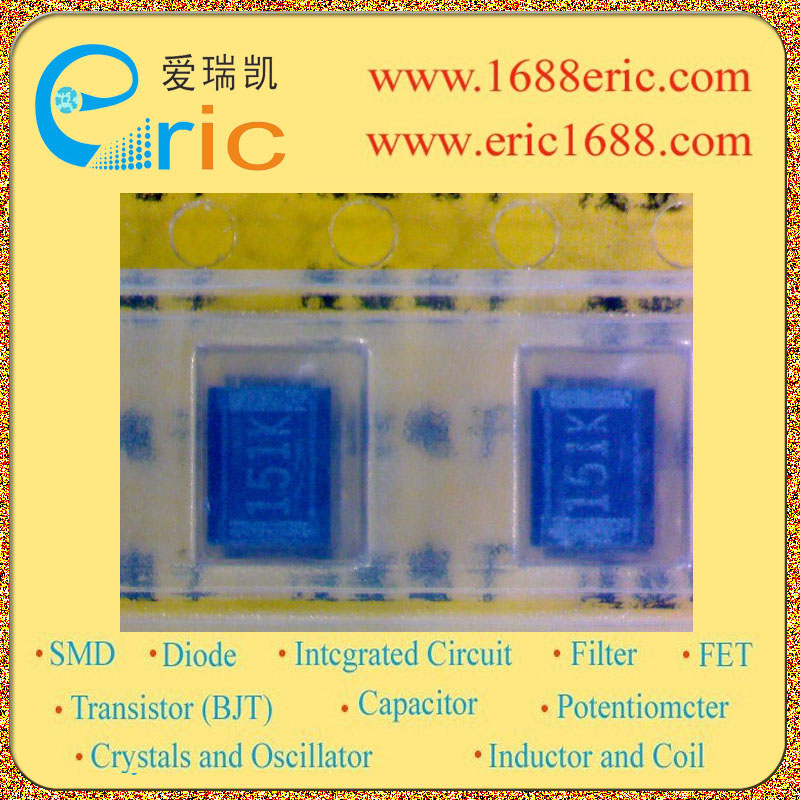

NL453232T-151K
 型号:  NL453232T-151K
 标记/丝印/代码/打字:  151K
 厂家:  TDK
 封装:  4532-151K
 批号:  05+
 库存数量:  12900
 所属分类:  电感Inductor/Coil/Choke
  小功率电感Low Power Inductor
    绕线Wirewound
 技术文档PDF:  在线阅读

 在线购买

NL453232T-151K 151K 的参数

电感值 Inductance 150UH
误差 Tolerance ±10%
额定电流 Current Rating 105mA
饱和电流 Current - Saturation
不同频率时的Q值 Q @ Frequency 40 @ 0.796MHz
自振谐频率SRF Frequency - Self Resonant 5.0MHz
DC电阻DCR DC Resistance (DCR) 9.00Ω/Ohm
屏蔽 Shielding 屏蔽 Shielded
Description & Applications NL Series NL4532 Type FEATURES ? The NL series are available in 5 form factors ranging from 2016 to 5650. ? Utilizing a miniaturized winding structure, these products provide high Q characteristics. ? Inductance tolerance is ±5 percent.
描述与应用 NL系列NL4532类型 特点 NL系列5种形式因素,从2016到5650不等。 ?利用微型绕组结构,具有高Q特性。 ?电感容差为±5%。
技术文档PDF下载 在线阅读



 相关型号列表

型号 标记/丝印/代码 厂家 批号 封装 数量 描述 详细资料
NL453232T-150K 150K TDK 05+ 4532-150K 0 电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound 查看
NL453232T-151K 151K TDK 05+ 4532-151K 0 电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound 查看
NL453232T-151K 151K TDK 05+ 4532-151K 12900 电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound 查看
NL453232T-150K 150K TDK 05+ 4532-150K 450 电感Inductor/Coil/Choke-小功率电感Low Power Inductor-绕线Wirewound 查看
NL453232T-150J TDK 05+NOPB 4532-150J 250 电感Inductor/Coil/Choke-其它Other 查看
NL453232T-151J TDK 05+ 4532-151J 1000 电感Inductor/Coil/Choke-其它Other 查看
