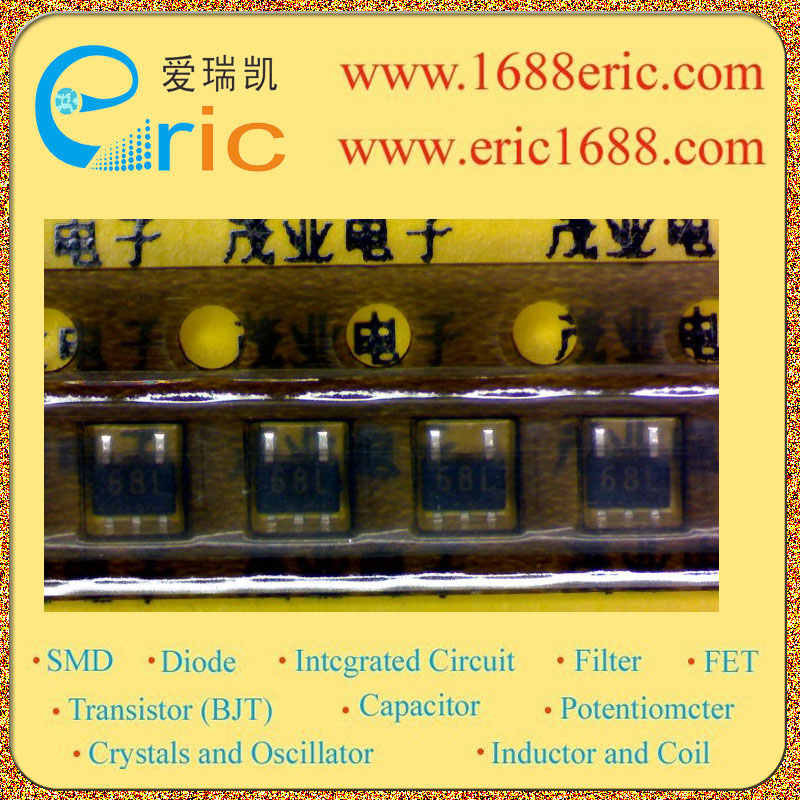

NNCD6.8LH 68l 的参数 |
| 极性
Polarization |
单向 Unidirectional |
| 反向关断电压/工作电压VRWM
Reverse Standoff Voltage |
|
| 反向击穿电压VBR
Breakdown Voltage |
6.8V |
| 峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation |
2W |
| 峰值脉冲电流IPPm
Peak Forward Surge Current |
|
| 额定耗散功率Pd
Power dissipation |
0.2W/200mW |
| Description & Applications |
FEATURES ? E.S.D NOISE CLIPPING DIODES ? LOW CAPACITANCE TYPE ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES(QUARTO TYPE: COMMON ANODE)5-PIN SUPER SMALL MINI MOLD ? Based on the electrostatic discharge immunity test (IEC1000-4-2), the product assures the minimum endurance of 8 kV. ? Capacitance is small with 10 pF (at VR = 0 V, f = 1 MHz)between the terminal. It is excellent in the frequency characteristic. ? With 4 elements mounted (common anode) in the 5-pin super mini mold package, that product can cope with more highdensity assembling. APPLICATIONS ? External interface circuit ESD absorption in the high-speed data communication bus such as USB |
| 描述与应用 |
特点 ?E.S.D噪音限幅二极管 ?低电容静电放电噪声限幅二极管（QUARTO类型：共阳极）5针超小迷你模具 ?基于静电放电抗扰度试验（IEC61000-4-2），产品保证8千伏的最低耐力。 ?小电容与10 pF（在VR =0 V，F =1兆赫）之间的终端。它具有优异的频率特性。 ?使用4个元素在5-pin超级安装（共阳极）小型模具包，该产品可以应付更多高密度组装。 应用 ?外部接口电路的ESD吸收高速数据通信总线，如USB |
